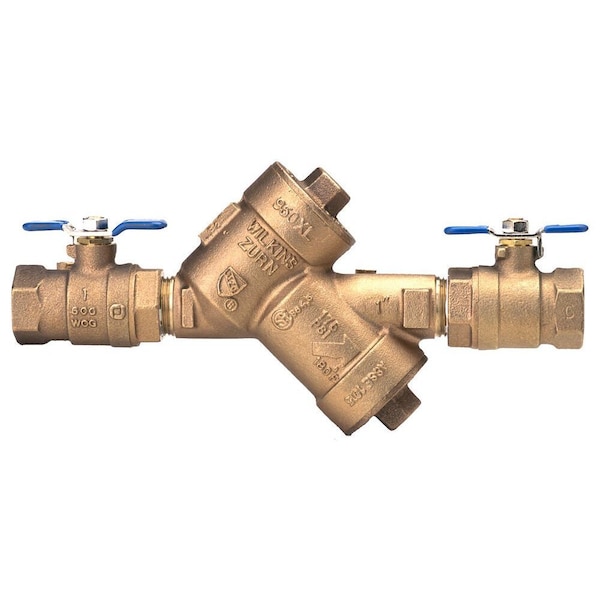

Double Check Backflow Preventer, Bronze
- Mfr # 2-950XL
- Zoro # G7737823
product price:Â
$
1,542.99
/ea
Free Shipping & Returns
Key Features
Width
12
Features
Short lay length provides easy installation in compact spaces
Height
20
Length
9.8
Connection Type - Side 1
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2-950XL
- Zoro #
- G7737823
- UPC #
- 612052040325
- Country of Origin
- United States
- Item
- Double Check Valve Assembly 2" 950Xl
- Features
- Short lay length provides easy installation in compact spaces
- Connection Type - Side 1
- NPT
- Standards
- ANSI B1.20.1, ASSE Listed 1015, ASTM B 584, City of Los Angeles Approved, CSA Certified B64.5, cUPC Listed, NYC MEA 426-89-M VOL 3
- Hazard Protection Level
- Low Hazard
- For Media
- Potable Water
- Mounting Orientation
- Horizontal
- Backflow Preventer Type
- Double Check Assembly (DC)
- Maximum Pressure - Steam
- 175 psi
- Seat Material
- Silicone
- Operating Temperature - Maximum
- 180 Degrees F
- Includes Flood Protection
- No Flood Protection
- Shut-Off Valve Included
- Ball Valve
- Spring Material
- Stainless Steel
- Connection Type - Side 2
- NPT
- Flow
- 248 gpm
- Includes Freeze Sensor
- No Freeze Sensor
- Operating Temperature - Minimum
- 33 Degrees F
- Includes
- Double Check Backflow Preventer
- Body Material
- Bronze
- Seal Material
- Silicone
- Maximum Pressure - Operating
- 175 psi
- Includes Strainer
- No Strainer
Dimensions
- Width
- 12
- Height
- 20
- Length
- 9.8
- Nominal Valve Size
- 2 in
- Connection Size - Side 2
- 2 in
- Connection Size - Side 1
- 2 in
- Overall Height
- 9 in
- Check Valve Length
- 10 5/8 in
- Overall Width
- 5.5 in
- Overall Length
- 18.25 in
Description
Double Check Backflow Preventer,Bronze
