  11. Sensor 4" Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

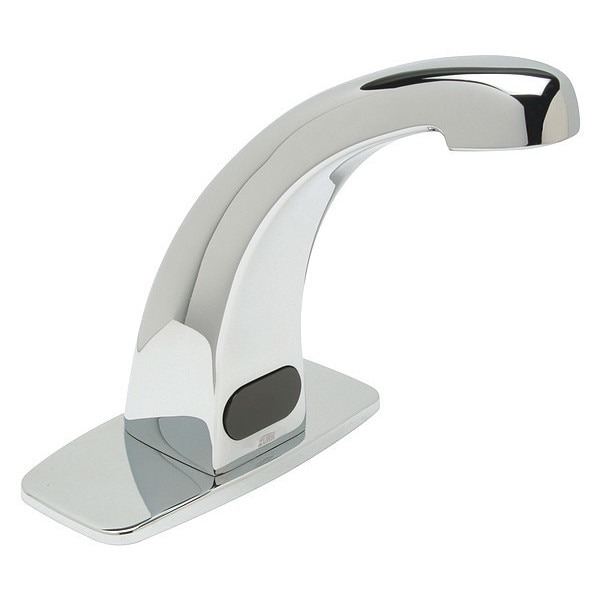

Zurn Sensor 4" Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated Z6913-XL-CP4 - main

Sensor 4" Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

  • Mfr # Z6913-XL-CP4

  • Zoro # G5374649

product price: $485.99
/ea
Free Shipping & Returns

Key Features

Material
Cast Brass
Height
7-5/16"
Application
Commercial
Finish
Chrome
Faucet Type
Bathroom Sink Faucet
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z6913-XL-CP4
Zoro #
G5374649
UPC #
889934216745
Country of Origin
Taiwan, Province of China

Dimensions

Height
7-5/16"
Spout Length
6 5/16 in
Manufacturers Warranty Length
3 yr
Max. Installation Surface Thickness
3 in
Spout Height
6 3/8 in
Water Inlet Connection Size
4 in
Overall Width
2 in
Spout Outlet Height
5 11/16 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
5 3/4 in
For Mounting Hole Diameter - Maximum
1 1/4 in
Inlet Connection Size
4 in
For Surface Thickness - Maximum
3 in

Details

Material
Cast Brass
Application
Commercial
Finish
Chrome
Item
Bathroom Sensor Faucet
Faucet Type
Bathroom Sink Faucet
Valve Type
Ball
Ligature Resistant
No
Faucet Finish
Polished Chrome
Series
AquaSense(R)
Residential / Commercial
Commercial
Faucet Operation
Sensor
Flow Outlet Type (Faucet)
Aerated
Sensor Range
1 in to 6 in
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Includes
Cover Plate, 4 in
Vandal Resistant Features
Vandal Resistant Outlet
Voltage
6V DC
Temp. Control
Yes
Amps
0.03 A
Flow Rate
0.5 gpm
Drain Type
None
Faucet Spout Shape
Mid Arc
Battery Charger CEC Compliant
Non CEC Compliant
Body Material
Brass
Connection
3/8" MIPS
Flow Outlet Type - Faucet
Aerated
ADA Compliant
Yes
Replacement Cartridge
4UZP3
Standards
ASME A112.18.1/CSA B125.1
ADA Compliance
ADA Compliant
Number of Holes
1
Mounting Hole Center to Center
4"
Mounting Type - Faucet
Deck
Green Certification or Other Recognition
WaterSense Certified
Commercial / Residential
Both
Power Source
Battery
Faucet Handle Type
None
CEC Compliant
Non CEC Compliant
Number of Handles
0
Flow Outlet Type
Vandal Resistant Aerator
Mounting Type
Deck
Features
Infrared Convergence-Type Proximity Sensor
Faucet Body Material
Brass
Max. Mounting Hole Center Distance
Single Hole
Valve Type - Faucets
Solenoid Valve
Spout Reach
5 1/2 in
Faucet Activation
Motion Sensor
Replacement Cartridge Mfr. Model Number
P6900-SRK
Temperature Control
Adjustable Temperature
Sensor Type
Fixed
Battery Type
AA
Warranty
3 yr
Mounting Hole Center-to-Center Distance - Maximum
4 in
Sensor Range - Maximum
7 1/2 in
Includes Transformer
Transformer Not Required
Pressure - Maximum
125 psi
Current
0.03 A
Water Supply Type
Hot and Cold Lines
Spout Style
Fixed
Temperature - Minimum
35 Degrees F
Spout Shape
Arc
Flow Type
Aerated
Temperature - Maximum
140 Degrees F
Inlet Connection Type
NPSM
Product Type
Sensor Faucet
CEC Compliance
CEC Compliant
Compatible Cartridge Manufacturer Part Number
P6900-SRK
Ligature Resistance
Not Ligature-Resistant
Number of Mounting Holes
3
Temperature Control Method
Below Deck Temperature Mixing Valve
Includes Handle
Handle Not Included
Operation Method
Motion Sensor
Vandal Resistance
Vandal-Resistant Outlet
Includes Drain
Drain Not Included
For Location
Bathroom
Time Out
30 sec
Includes Batteries
Batteries Included
Flow Rate - Maximum
0.5 gpm

Description

Mid Arc,Chrome,Zurn,AquaSense,Cast Brass
