  11. Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

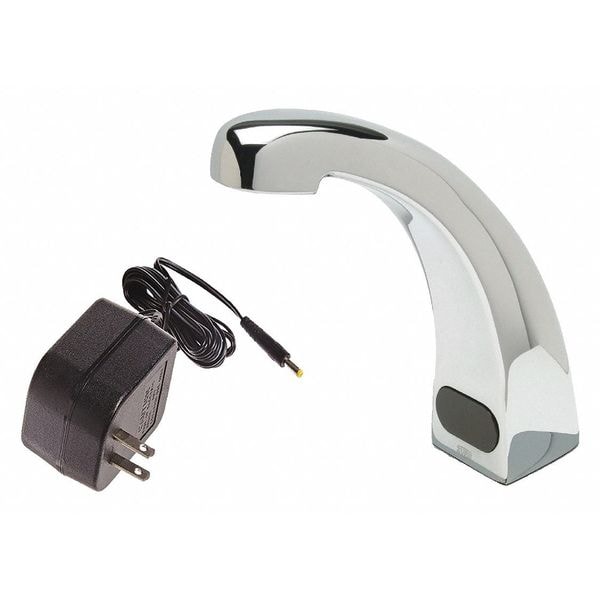

Zurn Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated Z6913-XL-ACA - main

Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

  • Mfr # Z6913-XL-ACA

  • Zoro # G5379853

product price: $540.99
/ea
Free Shipping & Returns

Key Features

Material
Cast Brass
Height
7-5/16"
Application
Commercial
Finish
Chrome
Ligature Resistant
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z6913-XL-ACA
Zoro #
G5379853
UPC #
889934216608
Country of Origin
Taiwan, Province of China

Dimensions

Height
7-5/16"
Manufacturers Warranty Length
3 yr
Spout Length
6 5/16 in
Max. Installation Surface Thickness
3 in
Water Inlet Connection Size
1/2 in
Spout Height
6 3/8 in
Overall Width
2 in
Spout Outlet Height
5 11/16 in
For Surface Thickness - Maximum
3 in
Inlet Connection Size
1/2 in
Spout Height - Maximum
5 3/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 1/4 in

Details

Material
Cast Brass
Application
Commercial
Finish
Chrome
Item
Bathroom Sensor Faucet
Ligature Resistant
No
Body Material
Brass
Battery Charger CEC Compliant
Non CEC Compliant
Residential / Commercial
Commercial
Flow Outlet Type (Faucet)
Aerated
Faucet Finish
Polished Chrome
CEC Compliant
Non CEC Compliant
Vandal Resistant Features
Vandal Resistant Outlet
Commercial / Residential
Both
Series
AquaSense(R)
Valve Type
Ball
Connection
3/8" MIPS
ADA Compliance
ADA Compliant
Number of Handles
0
Number of Holes
1
Flow Outlet Type - Faucet
Aerated
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Power Source
Hardwired
Replacement Cartridge
4UZP3
Faucet Spout Shape
Mid Arc
Voltage
7.5V DC
Sensor Range
1 in to 6 in
Amps
0.03 A
Mounting Type - Faucet
Deck
Faucet Type
Bathroom Sink Faucet
Faucet Handle Type
None
Includes
In-Line Filter, Plug-in Power Converter
Drain Type
None
ADA Compliant
Yes
Standards
ASME A112.18.1/CSA B125.1
Green Certification or Other Recognition
WaterSense Certified
Mounting Hole Center to Center
Single Hole
Flow Rate
0.5 gpm
Faucet Operation
Sensor
Temp. Control
Yes
Flow Outlet Type
Vandal Resistant Aerator
Features
Infrared Convergence-Type Proximity Sensor
Mounting Type
Deck
Temperature Control
Non-Adjustable Temperature
Spout Reach
5 1/2 in
Valve Type - Faucets
Solenoid Valve
Replacement Cartridge Mfr. Model Number
P6900-SRK
Faucet Activation
Motion Sensor
Faucet Body Material
Brass
Max. Mounting Hole Center Distance
Single Hole
Sensor Type
Fixed
Spout Shape
Arc
Vandal Resistance
Vandal-Resistant Outlet
Includes Handle
Handle Not Included
Time Out
30 sec
Spout Style
Fixed
Temperature Control Method
Below Deck Temperature Mixing Valve
Includes Drain
Drain Not Included
Warranty
3 yr
Mounting Hole Center-to-Center Distance - Maximum
1 1/4 in
Temperature - Minimum
35 Degrees F
CEC Compliance
CEC Compliant
Current
0.03 A
Operation Method
Motion Sensor
Includes Transformer
Transformer Not Required
Flow Rate - Maximum
0.5 gpm
Number of Mounting Holes
1
Flow Type
Aerated
Inlet Connection Type
NPSM
For Location
Bathroom
Sensor Range - Maximum
7 1/2 in
Temperature - Maximum
140 Degrees F
Product Type
Sensor Faucet
Ligature Resistance
Not Ligature-Resistant
Compatible Cartridge Manufacturer Part Number
P6900-SRK
Water Supply Type
Hot and Cold Lines
Pressure - Maximum
125 psi

Description

Mid Arc,Chrome,Zurn,AquaSense,Cast Brass

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
