  11. Displacement Connector, 22-14 AWG, PK1000
Shop All Wire Connectors
3M

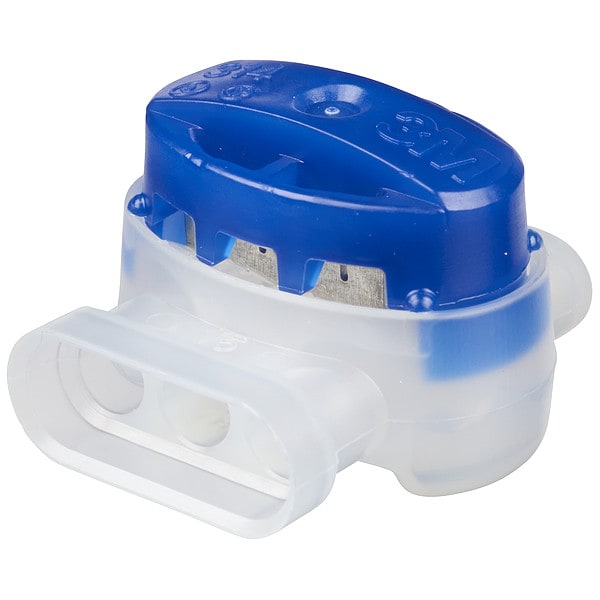

Displacement Connector, 22-14 AWG, PK1000

product price: $885.99
/pk 1000, $0.89/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Blue
  • Max. Voltage 600 V
  • Application Moisture Resistant
  • Fill Material Gel
  • Insulation Material Nylon
See all product information

Product Information

  • Brand 3M
  • MFR # 314-BIN
  • Zoro # G5510705
  • UPC #
    00054007092315
  • Country of Origin United States
  • Category Wire Connectors

Dimensions

Max. Insulation Dia. 0.155 in
Maximum Insulation Diameter 0.155 in
For Tap Wire Size 14 AWG, 16 AWG, 18 AWG, 19 AWG, 20 AWG, 22 AWG
Maximum Tap Wire Insulation Diameter 0.155 in
Minimum Tap Wire Size 22 AWG
Maximum Tap Wire Size 14 AWG
Maximum Run Wire Insulation Diameter 0.155 in
Minimum Run Wire Size 22 AWG
Maximum Run Wire Size 14 AWG
For Run Wire Size 14 AWG, 16 AWG, 18 AWG, 19 AWG, 20 AWG, 22 AWG

Details

Color Blue
Max. Voltage 600 V
Application Moisture Resistant
Fill Material Gel
Insulation Material Nylon
Wire Range (Run) 22 to 14 AWG
Flame Retardant Yes
Connector Type Pigtail
Standards CSA Certified, UL Listed
Crimping Tool 2JLF8
Wire Type Electrical
Item Insulation Displacement Connector
Wire Range (Tap) 22 to 14 AWG
Max. Temp. 221 Degrees F
Number of Ports 3
RoHS Compliant Yes
Contact Material Brass
Maximum Voltage 600 V
Special Features Self Stripping
Maximum Operating Temperature 221 Degrees F
Resistance Properties Corrosion Resistant, Moisture Resistant, Water Resistant
Contact Finish Tin
Compatible with Product Type Light Fixtures, Luminaries

Description

Insulation Displacement Connector, Color Blue, Connector Type Pigtail, Insulation Material Nylon, Maximum Insulation Diameter 0.155 in, Maximum Operating Temperature 221 Degrees F, Maximum Run Wire Insulation Diameter 0.155 in, Minimum Run Wire Size 22 AWG, Maximum Run Wire Size 14 AWG, Maximum Tap Wire Insulation Diameter 0.155 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 600 V, Number of Ports 3, Contact Finish Tin, Contact Material Brass, Fill Material Gel
