Female Disconnect, Yellow, 12-10AWG, PK500
Mfr # MNG10-375DFK
Zoro # G5614366
product price: $375.99
/pk 500, $0.75/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Insulation Color
Yellow
Connection Type
Crimp
Wire Range
12 to 10 AWG
Insulation Type
Nylon
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG10-375DFK
Zoro #
G5614366
UPC #
00054007020530
Country of Origin
United States
Dimensions

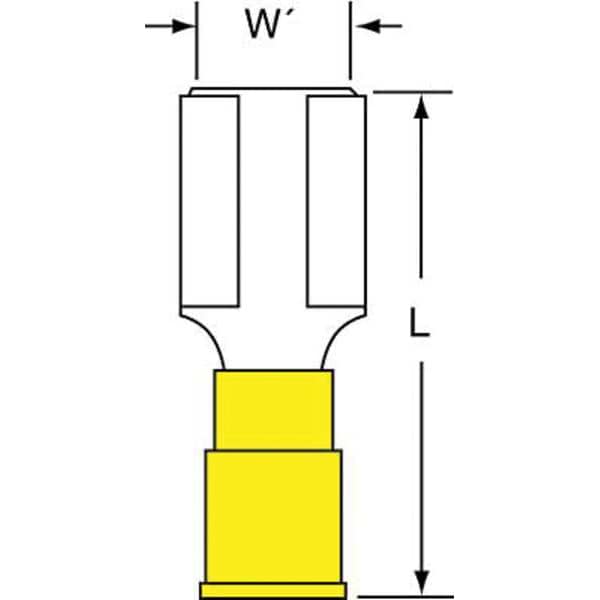

Overall Length
1.23 in
Tab Size
0.050 in x 0.375 in
Barrel Inside Dia.
0.175 in
Overall Diameter
0.25 in
Maximum Conductor Size
10 AWG
Maximum Insulation Outside Diameter
0.145 in
Minimum Conductor Size
12 AWG
Maximum Insulation Outer Diameter
0.25 in
Overall Width
0.37 in
Mates with Female Width
0.375 in
Pad Width
0.375 in
Diameter (D)
0.25 in
Barrel Inside Diameter
0.175 in
Bullet Diameter
0.156 in
Barrel Length
0.19 in
Mates with Male Tab Width (W')
0.375 in
Connection Width
0.375 in
Description
Female Disconnect, Insulation Color Yellow, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 1.23 in, Package Quantity 500
