Fork Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Bare Insulated, Yellow, Crimp Termination Only
Mfr # M10-14FLK
Zoro # G5656183
product price: $235.99
/pk 500, $0.47/ea
Free Shipping & Returns
Key Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Insulation Coverage
None
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M10-14FLK
Zoro #
G5656183
UPC #
00054007138501
Country of Origin
United States

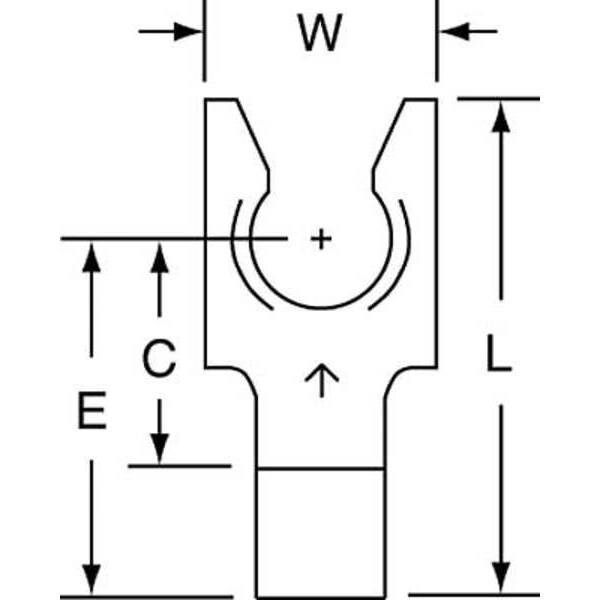

Dimensions
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
1/4 in
Overall Length
0.94 in
Tongue Width - Wire Connector
0.43 in
Barrel Inside Dia.
0.135 in
Tongue Thickness
0.04 in
Tongue Width
0.43 in
Barrel Length
0.25 in
Maximum Lock Width
0.48 in
Description
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size 1/4 in, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.25 in, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 12 AWG, Overall Length 0.94 in
