Fork Terminal, #4 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 1000 PK
Mfr # MVU14-4FLK
Zoro # G5758724
product price: $317.99
/pk 1000, $0.32/ea
Free Shipping & Returns
Key Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MVU14-4FLK
Zoro #
G5758724
UPC #
00054007018711
Country of Origin
United States

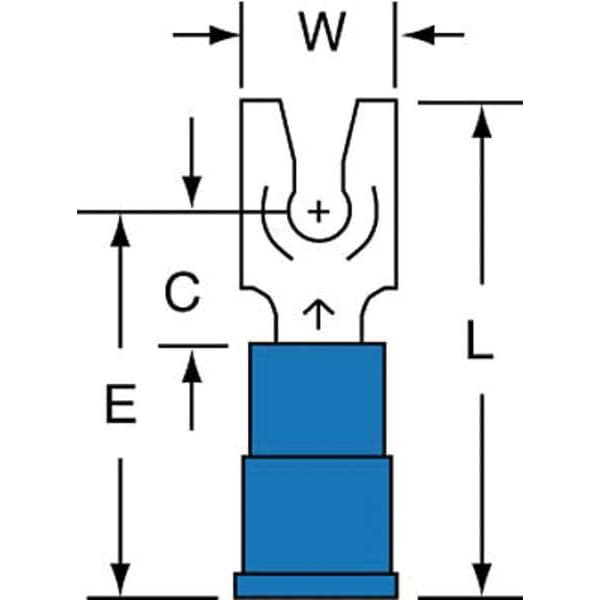

Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#4
Overall Length
0.88 in
Tongue Width - Wire Connector
0.25 in
Barrel Inside Dia.
0.09 in
Tongue Width
1/4 in
Maximum Lock Width
0.27 in
Barrel Length
0.25 in
Stud Diameter
0.112 in
Maximum Insulation Outer Diameter
0.17 in
Description
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #14, Termination Style Crimp, Seam Style Butted, Standards CSA, RoHS 2011/65/EU, UL, Barrel Length 0.25 in, Barrel Style Butted, Connection Material Copper, Connection Type Crimp, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 16 AWG, Overall Length 0.88 in
