Ring Terminal, #4 Stud Size, 18 AWG, 1,000 V, Nylon Insulated, Red, Crimp Termination Only, 1000 PK
Mfr # MNG18-4R/SK
Zoro # G5542196
product price: $591.99
/pk 1000, $0.59/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
22 AWG
Insulation Coverage
Partial Coverage
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG18-4R/SK
Zoro #
G5542196
UPC #
00054007010623
Country of Origin
United States

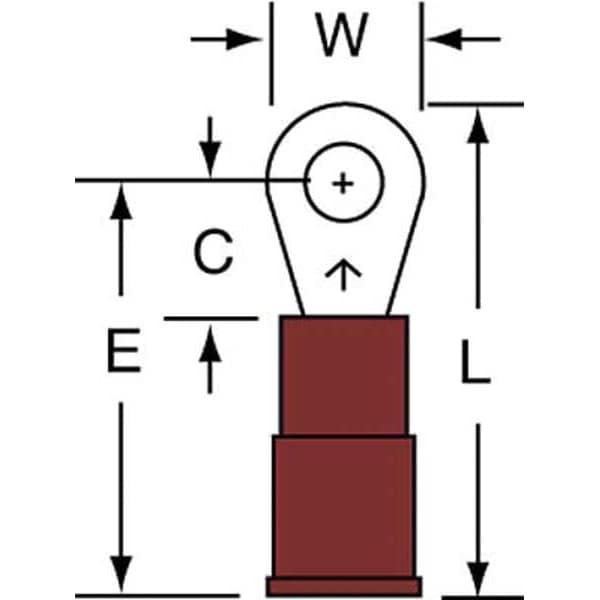

Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#4
Overall Length
0.79 in
Tongue Width - Wire Connector
0.25 in
Barrel Inside Dia.
0.07 in
Tongue Width
1/4 in
Tongue Length
0.54 in
Tongue Thickness
0.03 in
Barrel Length
0.25 in
Connection Width
0.112 in
Description
Ring Terminal, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Tongue Width 0.25 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.07 in, Barrel Length 0.25 in, Barrel Style Butted, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
