Ring Terminal, #6 Stud Size, 14 AWG, 600 V, Heat Shrink Insulated, Blue, Crimp Termination Only
- Mfr # MH14-6R/LK
- Zoro # G4146996
product price:Â
$
140.99
/pk 250, $0.56/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
16 AWG
Insulation Type
Heat Shrink
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MH14-6R/LK
- Zoro #
- G4146996
- UPC #
- 00054007063216
- Country of Origin
- United States
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Termination Style
- Crimp Termination Only
- Insulation Color
- Blue
- Insulation Type
- Heat Shrink
- Contact Material
- Copper
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CSA Certified, UL Listed
- Max. Voltage
- 600 V
- Connection Material
- Copper
- Terminal Connection
- Crimp
- Max. Temp.
- 221 Degrees F
- Connection Type
- Crimp
- Seam
- Brazed
- Wire Range
- 16 to 14 AWG
- Terminal Type
- Standard
- Seam Style
- Brazed
- Hole Spacing
- 0.16 in
- Insulation Material
- Heat Shrink
- Series
- MH14
- Special Features
- The Brazed-seam Barrel is Covered By an Adhesive-lined Polyolefin Tubing to Offer Moisture-seal Protection
- Contact Finish
- Tin
- Barrel Style
- Brazed
Description

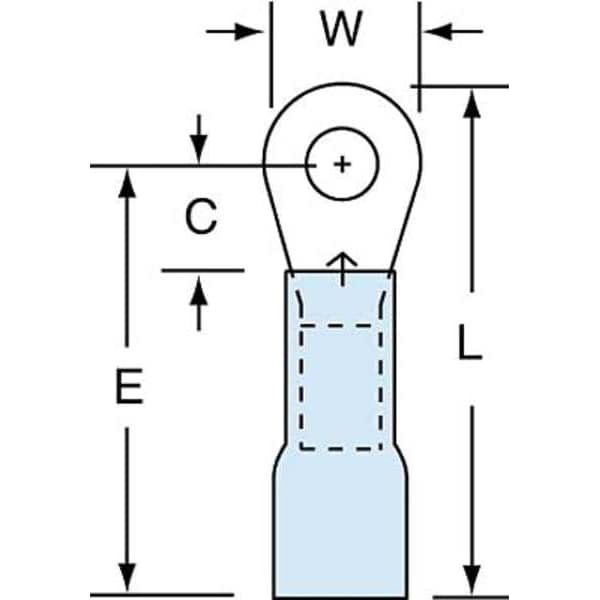

Ring Terminal, Insulation Color Blue, Insulation Material Heat Shrink, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards RoHS 2011/65/EU, Barrel Inside Diameter 0.09 in, Barrel Length 0.25 in, Barrel Style Brazed, Hole Spacing 0.16 in, Insulation Type Heat Shrink, Overall Length 1 in, Package Quantity 250
