  9. Scotchlok 12-10 AWG Non-Insulated Fork Terminal #10 Stud PK50
Shop All Wire Terminals
3M

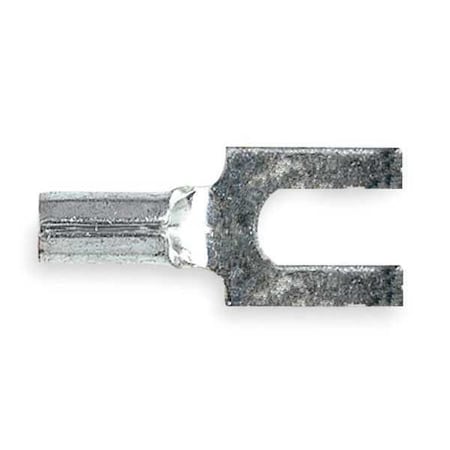

Scotchlok 12-10 AWG Non-Insulated Fork Terminal #10 Stud PK50

Hover or click to zoom Tap to zoom
Key Features
  • Wire Range: 12 to 10 AWG
  • Insulation Type: Non-Insulated
  • Stud Size: #10
  • Insulation Color: Yellow
  • Connection Material: Copper
  • Tongue Width - Wire Connector: 0.38 in
  • Max. Temp.: 347 Degrees F
  • Seam: Brazed
See full product details
$40.98
Pk of 50, $0.82/ea
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Stud Size #10
Tongue Width - Wire Connector 0.38 in
Overall Length 0.73 in
For Wire Size 10 AWG, 12 AWG
Barrel Length 0.25 in
Minimum Wire Size 12 AWG
Maximum Wire Size 10 AWG
Wire Size Range 12 AWG - 10 AWG
Tongue Width 0.38 in

Details

Wire Range 12 to 10 AWG
Insulation Type Non-Insulated
Insulation Color Yellow
Connection Material Copper
Max. Temp. 347 Degrees F
Seam Brazed
Standards CSA Certified, UL Listed
Item Fork Terminal
Max. Voltage 600 V
Terminal Type Standard
Terminal Connection Crimp
Connection Type Crimp
RoHS Compliant Yes
Maximum Voltage 600 V
Insulation Coverage None

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.25 in, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 12 AWG, Overall Length 0.73 in
