Shop All Mounted Linear Bearings
80/20

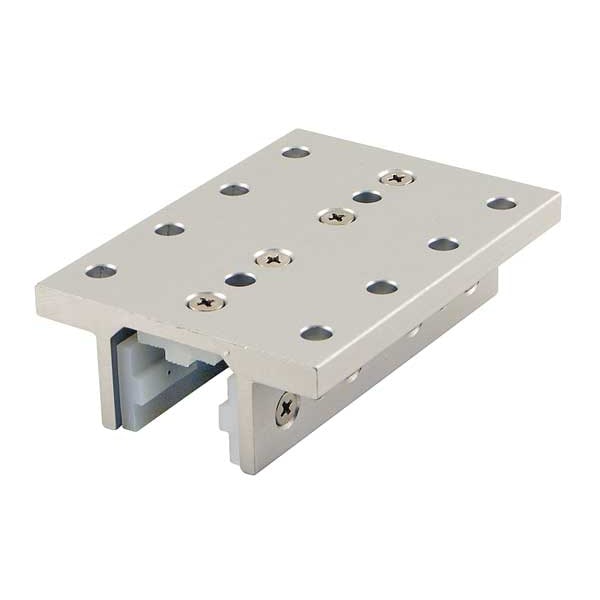

Linear Bearing, 2.937 In W, 4.000 In L
Mfr # 6426
Zoro # G2702664
product price: $82.49
/ea
Free Shipping & Returns
$82.49
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material UHMWPE
- Mounting Hole (In.) 0.257 in
- Overall Height (In.) 1.218 in
- Slot Width (In.) 0.255 in
- Height 1.218
Product Information
- Brand 80/20
- MFR # 6426
- Zoro # G2702664
- UPC # 094718092464
- Country of Origin United States
- Category Mounted Linear Bearings
Dimensions
Overall Height (In.) | 1.218 in |
Slot Width (In.) | 0.255 in |
Height | 1.218 |
Width | 2.937 |
Body Width (In.) | 2.937 in |
Dimension F (In.) | 0.312 in |
Mounting Hole Dia. (In.) | 0.257 in |
Dimension A (In.) | 1 in |
Overall Length (In.) | 4 in |
Dimension M (In.) | 0.906 in |
Overall Width (In.) | 2.937 in |
Dimension C (In.) | 1.625 in |
Bolt Size | 1/4-20 |
Dimension E (In.) | 0.812 in |
Dimension K | 0.812 in |
Dimension P | 0.5 in |
Dimension B (In.) | 0.312 in |
Dimension G (In.) | 2.937 in |
Dimension D (In.) | 0.406 in |
Dimension H (In.) | 0.656 in |
Dimension L (In.) | 1.218 in |
Overall Height | 1 7/32 in |
Mounting Hole Diameter | 17/64 in |
Overall Width | 2 15/16 in |
Overall Length | 4 in |
Details
Description
Linear Bearing, Standard Linear, Overall Height 1 7/32 in, Overall Length 4 in, Overall Width 2 15/16 in, Housing Material Aluminum, Mounting Hole Diameter 17/64 in, Anodized, Silver, System of Measurement Inch, 10 Series, Double Flanged, For Number of Slots 3, Standard, Flange Thickness 5/16 in, Pad Material UHMW Plastic, Compatible Brand and Series 10 Series
