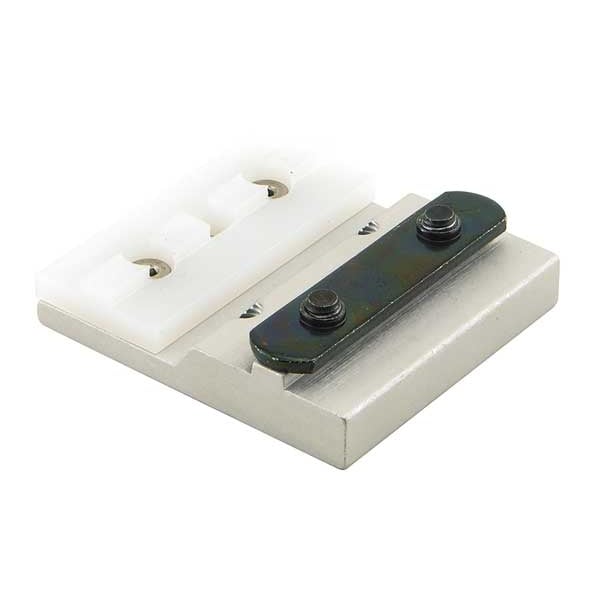

Linear Bearing, 3.125 In W, 2.812 In L

80/20| Zoro #: G1904646| Mfr #: 6860

$16.20 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1904646 Mfr #: 6860
Finish: Clear AnodizeLubrication: Dry
Bearing Type: UHMW PADColor: Silver
Item: Linear BearingMaterial: UHMWPE
Locking Type: OptionalSlot Width (mm): -
Includes: -Dimension Dp: -
Dimension Z: -Type: Single Short
Dimension H: -Flange Thickness (mm): -
Dimension H1 (In.): -Dimension F (In.): 1.625
Retaining Ring: -Flange Dia. (In.): -
Slot Angle (Degrees): -Dimension Y: -
Overall Width (In.): 3.125Dimension G1: -
Flange Thickness (In.): -Dimension H1: -
Dimension E (In.): 0.310Max. Pv: -
Dynamic Load Capacity (Lb.): -Overall Width (mm): -
Dimension X: -Overall Length (In.): 2.812
Dimension G: -Flange Dia. (mm): -
Dimension G1 (In.): -Dimension D (In.): 1.760
Steady State Speed: -Bore Dia. (In.): -
Overall Height (mm): -Dimension V (In.): -
Overall Height (In.): 0.500Dimension F1: -
Bore Dia. (mm): -Dimension F1 (In.): -
Dimension N3: -Dimension C (In.): 0.480
Self-Alignment: -Mounting Hole Center (In.): 1.500
Mounting Surface to Shaft Center (mm): -Dimension E1: -
Dimension V: -Mounting Hole (In.): 0.328
Mounting Surface to Shaft Center (In.): -Dimension E1 (In.): -
Dimension E2: -Dimension B (In.): 0.240
Accelerated Speed: -Body Width (In.): 3.125
Mounting Hole Dia. (mm): -Dimension A2: -
Dimension S (In.): -Mounting Bolt (In.): 5/16-18
Dimension F: -Dimension A2 (In.): -
Dimension d: -Dimension A (In.): 0.500
Liner: -Bolt Size: 5/16-18
Mounting Hole Center (mm): -Dimension A1: -
Dimension S: -Height: 0.5
Dimension E: -Temp. Range (F): -
Static Load Capacity (N): -Agency Compliance: -
Mounting Hole Dia. (In.): 0.328Dimension N2: -
Body Width (mm): -Dimension P: -
Dimension M (In.): -Dimension D: -
Static Load Capacity (Lb.): -Dynamic Load Capacity (N): -
Seal: -Slot Width (In.): 0.320
Dimension N: -Barrel Dia. (mm): -
Dimension O: -Dimension L (In.): 1.500
Dimension C: -Shaft Dia. (In.): -
Steady State Speed - Intermittent Dry: -Dimension B: -
Dimension K: 0.656Dimension J: -
Barrel Dia. (In.): -Dimension N2 (In.): -
Dimension H (In.): 0.750Dimension A: -
Overall Length (mm): -Steady State Speed - Continuous Dry: -
Dimension A1 (In.): -Width: 3.125
Dimension I: -Dimension R: -
Dimension N Dia. (In.): -Dimension G (In.): 3.125
Country of Origin (subject to change): United States

Product Description

Linear Bearing, Single Short, Overall Width 3.125 In, Overall Length 2.812 In, Overall Height 0.500 In, Body Width 3.125 In, Mounting Hole Center 1.500 In, Mounting Hole Dia 0.328 In, 5/16-18 Bolt Size, Slot Width 0.320 In, Height 0.500, Mounting Bolt (In.) 5/16-18, Mounting Hole (In.) 0.328, Width 3.125, For Use With 15 Series
