  13. AF146-30-11B-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1

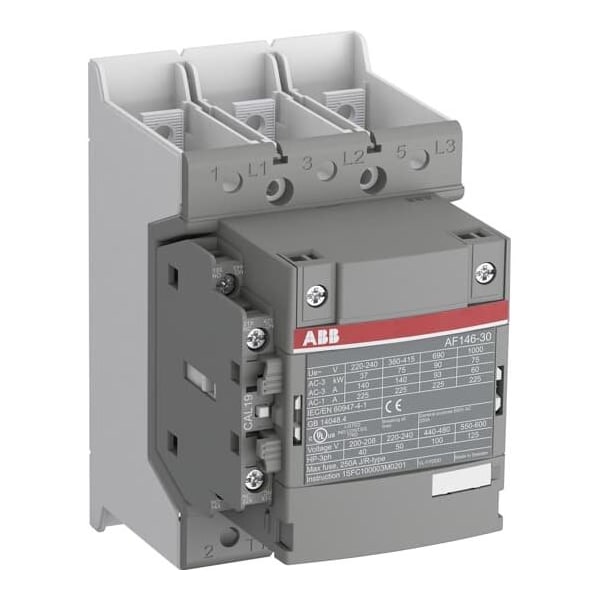

Abb AF146-30-11B-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1 AF146-30-11B-13 - main

AF146-30-11B-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1

  • Mfr # AF146-30-11B-13

  • Zoro # G9284750

product price: $960.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Working Height
3000 m
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Rated Short-Time Withstand Current
1168 A (at 40°C for 10 s), 200 A (at 40°C for 15 min), 477 A (at 40°C for 1 min), 1460 A (at 40°C for 1 s), 674 A (at 40°C for 30 s)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF146-30-11B-13
Zoro #
G9284750
UPC #
88861415747
Country of Origin
Unknown

Dimensions

Working Height
3000 m
Overall Depth
126 mm
Overall Height
150 mm
Overall Width
90 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Rated Short-Time Withstand Current
1168 A (at 40°C for 10 s), 200 A (at 40°C for 15 min), 477 A (at 40°C for 1 min), 1460 A (at 40°C for 1 s), 674 A (at 40°C for 30 s)
IP Rating
IP00, IP20
Hold VA
6 VA
Operating Time
37 to 47 ms (Coil De-energization and NO Contact Opening), 25 to 55 ms (Coil Energization and NO Contact Closing)
Rated Insulation Volts
600/1000V
Impulse Withstand Voltage
8 kV
Max. Operating Watts
75 kW (at 415V, 1000V, 380/400V), 90 kW (at 440V, 500V, 690V), 45 kW (at 220/230/240V)
Net Weight
1.3 kg
Mechanical Durability
5 Mcycles
Horsepower @ Three Phase - 480V AC
100 hp
Horsepower @ Three Phase - 240V AC
50 hp
Horsepower @ Three Phase - 208V AC
40 hp
Conventional Free Air Thermal Current
225 A (at 40°C)
Maximum Voltage Rating
1000V
Frequency
50/60 Hz
Terminal Connection Type
Bar

Description

ABB CTR, 3P, 130A, 100-250VAC/DC is an IEC Magnetic Contactor. It is a three-pole switch with a coil that operates from 100-250 VAC/DC and includes one normally closed and one normally open auxiliary contact (1NC/1NO). The device uses bar-type electrical connections and measures 126 mm deep, 90 mm wide, and 150 mm high, with a net weight of 1.3 kg. It is rated for insulation voltage up to 1000 V. The device operates within specified frequency ranges; IP ratings indicate the degree of protection provided by enclosures. The device is tested to withstand impulse voltages up to 8 kV under specified test conditions.

Key features

  • Poles/Current: 3P, 130 A
  • Auxiliary contacts: 1NC/1NO
  • Coil voltage: 100-250 VAC/DC
  • Control circuit voltage limits: 0.85 to 1.1 Uc
  • Dimensions: Depth 126 mm; Height 150 mm; Width 90 mm
  • Electrical connection: Bars
  • Rated insulation/operating voltage: 600/1000 V; Rated voltage 1000 V
  • Frequency: 50/60 Hz
  • IP rating: IP00, IP20
  • Impulse withstand: 8 kV
  • Hold VA: 6 VA
  • Mechanical durability: 5 Mcycles
  • Thermal amperage: 225 A (at 40°C)
  • Horsepower (Three Phase): 40 hp (208V), 50 hp (240V), 100 hp (480V)
  • Max operating watts: 75 kW (415V/1000V/380/400V), 90 kW (440V/500V/690V), 45 kW (220/230/240V)
  • Operating time: 37–47 ms (coil de-energization and NO opening), 25–55 ms (coil energization and NO closing)
  • Working height: 3000 m
  • Net weight: 1.3 kg
