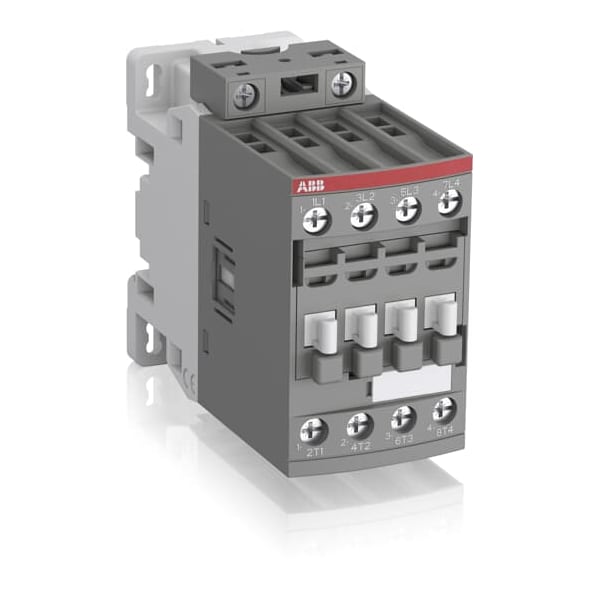

Abb AF26-40-00-11, AF26 4P CONTR, 24-60VAC, 20-60VDC AF26-40-00-11 - main

AF26-40-00-11, AF26 4P CONTR, 24-60VAC, 20-60VDC

  • Mfr # AF26-40-00-11

  • Zoro # G9284297

product price:  $209.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
24V-60V AC, 20V-60V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
AF26-40-00-11
Zoro #
G9284297
UPC #
80432556087
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Depth
101 mm
Overall Height
86 mm
Overall Width
45 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
24V-60V AC, 20V-60V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
6 kV
IP Rating
IP20
Rated Insulation Volts
600/690V
Rated Short-Time Withstand Current
300 A (at 40°C for 10 s), 55 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 450 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
Net Weight
0.36 kg
Max. Operating Watts
11 kW (at 400V, 415V, 440V, 500V), 9 kW (at 690V), 5.5 kW (at 220/230/240V)
Frequency
50/60 Hz
Conventional Free Air Thermal Current
55 A (at 40°C)
Maximum Voltage Rating
690V
Number of Poles
4
Full Load Amps-Resistive
45 A
Item
Contactor
Number of Auxillary Contacts
0
Full Load Amps-Inductive
23.2 A
Reversing Capability
Non-Reversing

Description

The ABB - AF26-40-00-11, AF26 4P CONTR is an IEC Magnetic Contactor designed for industrial applications. It operates with a coil voltage of 24V to 60V AC and 20V to 60V DC. The contactor has screw terminals for electrical connection and does not include auxiliary contacts. With a depth of 101mm, height of 86mm, and width of 45mm, it features an IP20 rating that offers protection against solid objects up to 12mm in size but no protection against liquids.

Key Features:

  • Impulse withstand voltage: This product is designed to handle sudden surges in power, with a specified maximum limit of 6kV.
  • Operating time: The operating times are specified between the ranges of approximately 11ms (for Coil De-energization and NO Contact Opening) to around 98ms (for Coil De-energization and NC Contact Closing).
  • Rated insulation volts: The product's specifications include an insulation voltage capacity within the range of both600/690V.
  • Standards compliance: This product has been manufactured according to international standards including IEC60947-1/60947-4-1, EN60947-1/60947-4-, UL508, CSA C22.2.
  • Vibration resistance: The contactor's design includes features for vibration resistance levels that vary from two G when open to four G when closed.
  • Working height:The manufacturer specifies that it operates within heights reaching up to3000 m250.
