- Item

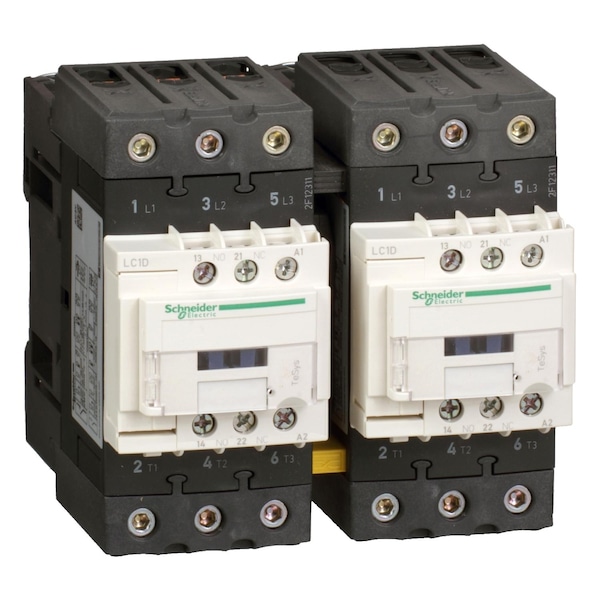

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30
- HP @ 3 Phase - 575V
- 40 hp
- Series
- LC2D
- Application
- Motor Control, Resistive Load
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- Impedance
- 1.5 mOhm
- Switching Voltage
- 17 V (Signalling Circuit)
- Non-Overlap Time
- 1.5 ms
- Mechanical Durability
- 6 Mcycles
- Hold VA
- 13 VA
- Electrical Durability
- 1.45 Mcycles (50 A, AC-3, Less than 440 V); 1.1 Mcycles (80 A, AC-1, Less than 440 V)
- Includes Protective Cover
- Yes
- Max. Operating Watts
- 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit)
- Operating Time
- 4 to 19 ms (Opening), 12 to 26 ms (Closing)
- Rated Short-Time Withstand Current
- 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Watts Loss
- 4 to 5W
- Impulse Withstand Voltage
- 6 kV
- Rated Insulation Volts
- 600/690V
- Rated Breaking Capacity
- 900 A @ 440V
- Net Weight
- 1.88 kg
- Signalling Circuit Frequency
- 25 to 400 Hz
- Overvoltage Category
- CAT III
- Switching Current
- 5 mA (Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Fire Rating
- UL 94 V1
- IP Rating
- IP20
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz)
- Tightening Torque
- 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
- Operating Speed
- 3600 cycles per hr
- Inrush VA
- 140 VA
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Front Cover
- With
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rated Operational Current
- 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Interlocking Type
- Mechanical
- Power Dissipation Per Pole
- 3.7 W AC-3; 9.6 W AC-1; 3.7 W AC-3e
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Inrush Power in VA
- 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C))
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Control Circuit Type
- AC 60 Hz
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Contactor Application
- Resistive load; Motor control
- Control Circuit Voltage
- 120 V AC 60 Hz
- Climatic Withstand
- IACS E10; IEC 60947-1 Annex Q category D
- Pollution Degree
- 3
- Protective Treatment
- TH IEC 60068-2-30
- Heat Dissipation
- 4 to 5 W 60 Hz
- Device Presentation
- Preassembled with reversing power busbar
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 80 A (at 140°F (60°C)) for power circuit
- Product Name
- TeSys D; TeSys Deca
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Utilisation Category
- AC-1; AC-3; AC-3e
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Full Load Current - Inductive
- 50 A
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Full Load Current - Resistive
- 80 A
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Pole Contact Composition
- 3 NO
- Mounting Style
- Plate, Rail
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC, 300V DC
