Shop SCHNEIDER ELECTRIC

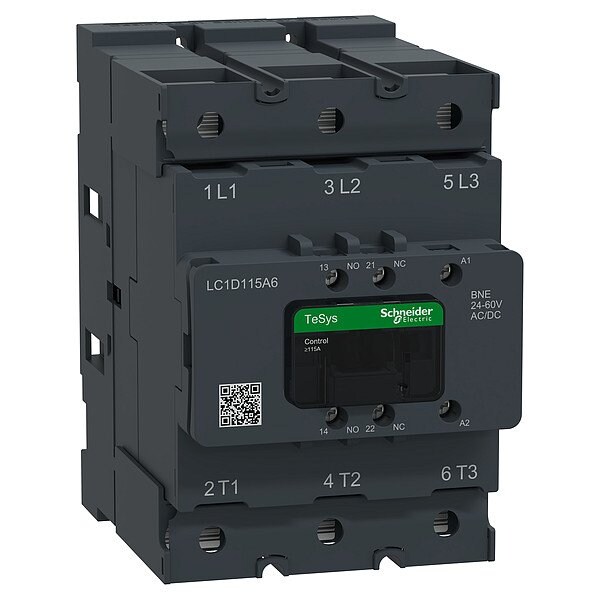

CTR Deca 115A 3P 24-60V ACDC Lug

  • Mfr # LC1D115A6BNE

  • Zoro # G322842507

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Number of Auxillary Contacts
2
Terminal Connection Type
Box Lugs
Auxiliary Contact Form
1NO/1NC
Minimum Operating Temperature
-40 Degrees F
Contactor Style
IEC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D115A6BNE
Zoro #
G322842507
UPC #
-
Country of Origin
Multiple
Number of Auxillary Contacts
2
Terminal Connection Type
Box Lugs
Auxiliary Contact Form
1NO/1NC
Minimum Operating Temperature
-40 Degrees F
Contactor Style
IEC
Mechanical Operating Durability
8,000,000
Full Load Current - Resistive
Not Rated
Frequency
50/60 Hz
Embedded Surge Suppressor
Yes
Coil Voltage
24-60V AC/DC
Full Load Current - Inductive
115 A
Electrical Operating Durability
1,000,000, 500,000
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Mounting Style
Plate
Item
IEC Contactor
Phase
Three
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Includes Auxiliary Contacts
Yes
Reversing Capability
Non-Reversing
Maximum Voltage Rating
440V
Series
Tesys Deca
Number of Normally Open Main Contacts
3
Maximum Operating Temperature
140 Degrees F
Number of Poles
3

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24-60V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.9 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
