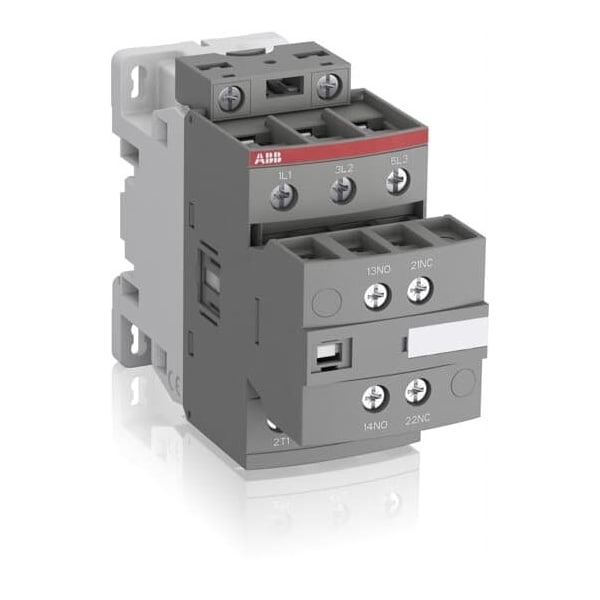

AF30-30-11-13, AF30-30-11-13 100-250V50/60HZ-DC CO

  • Mfr # AF30-30-11-13

  • Zoro # G9284839

product price:
$
238.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Rated Insulation Volts
600/690V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF30-30-11-13
Zoro #
G9284839
UPC #
88861424427
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Depth
111.5 mm
Overall Height
86 mm
Overall Width
45 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Rated Insulation Volts
600/690V
Impulse Withstand Voltage
6 kV
IP Rating
IP20, IP40
Net Weight
0.35 kg
Rated Short-Time Withstand Current
350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Max. Operating Watts
15 kW (at 380/400V, 415V), 18.5 kW (at 440V, 500V, 690V), 9 kW (at 220/230/240V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Voltage Rating
690V
Conventional Free Air Thermal Current
16/50 A (at 40°C)
Frequency
50/60 Hz
Full Load Amps-Inductive
32 A
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Amps-Resistive
50 A
Number of Auxillary Contacts
2
Item
Contactor

Description

The ABB AF30-30-11-13 is an IEC magnetic contactor with a coil rated for 100–250 V AC/DC and a 1NC/1NO auxiliary contact configuration. It features screw terminal connections and specific physical dimensions (width 45 mm, height 86 mm, depth 111.5 mm).

Auxiliary Contact Form: 1NC/1NO

  • Coil Voltage: Rated at nominal voltages between approximately 100 V to 250 V AC/DC as per specifications
  • Electrical Connection: Designed with screw terminal connections suitable within specified wiring standards
  • Dimensions: Depth approximately X mm; Height approximately Y mm; Width approximately Z mm (specified dimensions provided)
  • Net Weight: Approximately X kg based on manufacturing specifications
  • Frequency: 50/60 Hz
  • Rated Voltage: 690 V
  • Rated Insulation Volts: 600/690 V
  • IP Rating: IP20, IP40
  • Impulse Withstand Voltage: 6 kV
  • Max Operating Watts: 15 kW (380/400 V, 415 V); 18.5 kW (440 V, 500 V, 690 V); 9 kW (220/230/240 V)
  • Thermal Amperage: 16/50 A (at 40 °C)
  • Rated Short-Time Withstand Current: 350 A (40 °C 10 s); 50 A (40 °C 15 min); 150 A (40 °C 1 min); 700 A (40 °C 1 s); 225 A (40 °C 30 s)
  • Operating Time: 13–98 ms (Coil De-energization and NC Contact Closing), 11–95 ms (Coil De-energization and NO Contact Opening), 38–90 ms (Coil Energization and NC Contact Opening), 40–95 ms (Coil Energization and NO Contact Closing)
  • Standards: IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
  • Vibration Resistance: 4 G (Contactor Closed), 2 G (Contactor Open)
  • Working Height: 3000 m
  • HP Ratings: Single Phase 120 V AC → 2 hp; Single Phase 240 V AC → 5 hp; Three Phase 208 V AC → 10 hp; Three Phase 240 V AC → 10 hp; Three Phase 480 V AC → 20 hp
