  13. AF52-40-00-13, CONTACTOR 4 POLE 80A 600VAC

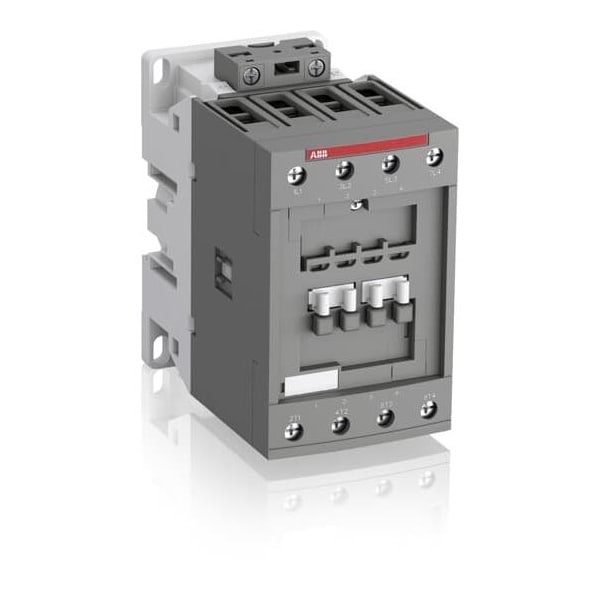

Abb AF52-40-00-13, CONTACTOR 4 POLE 80A 600VAC AF52-40-00-13 - main

AF52-40-00-13, CONTACTOR 4 POLE 80A 600VAC

  • Mfr # AF52-40-00-13

  • Zoro # G9281899

product price: $790.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
IP Rating
IP10, IP20
Rated Short-Time Withstand Current
600 A (at 40°C for 10 s), 110 A (at 40°C for 15 min), 250 A (at 40°C for 1 min), 1000 A (at 40°C for 1 s), 350 A (at 40°C for 30 s)
Max. Operating Watts
15 kW (at 220/230/240V), 22 kW (at 380/400V), 30 kW (at 415V, 440V, 500V), 30 kW (at 690V)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF52-40-00-13
Zoro #
G9281899
UPC #
88861436246
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Height
125.5 mm
Overall Width
70 mm
Overall Depth
113.5 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
IP Rating
IP10, IP20
Rated Short-Time Withstand Current
600 A (at 40°C for 10 s), 110 A (at 40°C for 15 min), 250 A (at 40°C for 1 min), 1000 A (at 40°C for 1 s), 350 A (at 40°C for 30 s)
Max. Operating Watts
15 kW (at 220/230/240V), 22 kW (at 380/400V), 30 kW (at 415V, 440V, 500V), 30 kW (at 690V)
Net Weight
1.16 kg
Impulse Withstand Voltage
6 kV
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
600/690V
Horsepower @ Three Phase - 208V AC
15 hp
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Three Phase - 240V AC
20 hp
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Single Phase - 120V AC
3 hp
Conventional Free Air Thermal Current
105 A (40°C)
Frequency
50/60 Hz
Terminal Connection Type
Screw
Maximum Voltage Rating
690V

Description

ABB AF52-40-00-13 is a four-pole IEC magnetic contactor designed to switch electrical loads in AC circuits. It is rated for operation within the specified voltage and current ranges and has no auxiliary contacts. The device is compatible with coil voltages within the specified range of 100–250 V (AC/DC). Physical dimensions are 70 mm wide, 125.5 mm high, and 113.5 mm deep, with a net weight of 1.16 kg.

Auxiliary Contact Form: No Auxiliary Contacts

  • Coil Voltage: 100V-250V AC/DC
  • Electrical Connection: Screw Terminals
  • Depth: 113.5 mm
  • Height: 125.5 mm
  • Width: 70 mm
  • Net Weight: 1.16 kg
  • Rated Voltage: 690V
  • Hz: 50/60 Hz
  • IP Rating: IP10, IP20
  • Rated impulse withstand voltage: 6 kV
  • Designed to operate within insulation voltage ratings up to 690V
  • Power ratings are provided based on standard operating conditions; actual performance may vary.
  • Rated Short-Time Withstand Current: 600 A (40°C, 10 s), 110 A (40°C, 15 min), 250 A (40°C, 1 min), 1000 A (40°C, 1 s), 350 A (40°C, 30 s)
  • Thermal Amperage: 105 A (40°C)
  • Vibration Resistance: 3 G (Contactor Closed), 2 G (Contactor Open)
  • Working Height: 3000 m
