  13. HKS4-20, AUX SW 2-NO MS4XX , PK 2

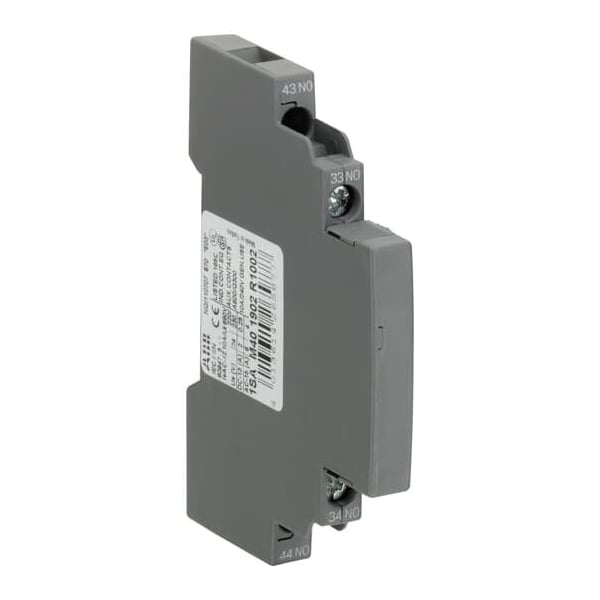

Abb HKS4-20, AUX SW 2-NO MS4XX , PK 2 HKS4-20 - main

HKS4-20, AUX SW 2-NO MS4XX , PK 2

  • Mfr # HKS4-20

  • Zoro # G9282781

product price: $132.99
/pk 2, $66.50/ea
Free Shipping & Returns

Key Features

Contact Rating UL/CSA
B600Q600
Rated Operational Current AC-15 (Ie)
(230 V) 4 A(24 V) 6 A(400 V) 3 A
Standards
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1IEC/EN 60947-5-1UL 508
Product Net Depth / Length
69 mm
Product Net Height
89 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HKS4-20
Zoro #
G9282781
UPC #
66201987336
Country of Origin
Unknown

Dimensions

Product Net Depth / Length
69 mm
Product Net Height
89 mm
Product Net Width
9 mm
Wire Stripping Length
Auxiliary Circuit 10 mm

Details

Contact Rating UL/CSA
B600Q600
Rated Operational Current AC-15 (Ie)
(230 V) 4 A(24 V) 6 A(400 V) 3 A
Standards
CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1IEC/EN 60947-5-1UL 508
Maximum Operating Voltage UL/CSA
Auxiliary Circuit 600 V AC/DC
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Rigid 1/2x 0.5 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm²
Tightening Torque UL/CSA
Auxiliary Circuit 7 ... 10.3 in·lb
Number of Auxiliary Contacts CO (SPDT)
0
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Recommended Screw Driver
Pozidriv 2
Rated Operational Voltage
690 VMain Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC
Suitable For
MS450MS451MO450MS495MS496MS497MO495MO496
Product Name
Auxiliary Contact
Number of Auxiliary Contacts NC
0
Accessory Type
Auxiliary Contact
Suitable for Product Class
Manual Motor Starter
Degree of Protection
IP20
Rated Operational Current DC-13 (Ie)
(110 V) 0.5 A(220 V) 25 A(24 V) 1 A
Conventional Free-air Thermal Current (Ith)
10A
Connecting Capacity Auxiliary Circuit UL/CSA
Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG
Tightening Torque
Auxiliary Circuit 0.8 ... 1.2 N·m
Ambient Air Temperature
Operation -25 ... +70°CStorage -50 ... +80°C
Accessory Group
Electrical
Rated Insulation Voltage (Ui)
690 V
Number of Auxiliary Contacts NO
2

Description

AUX SW 2-NO MS4XX
