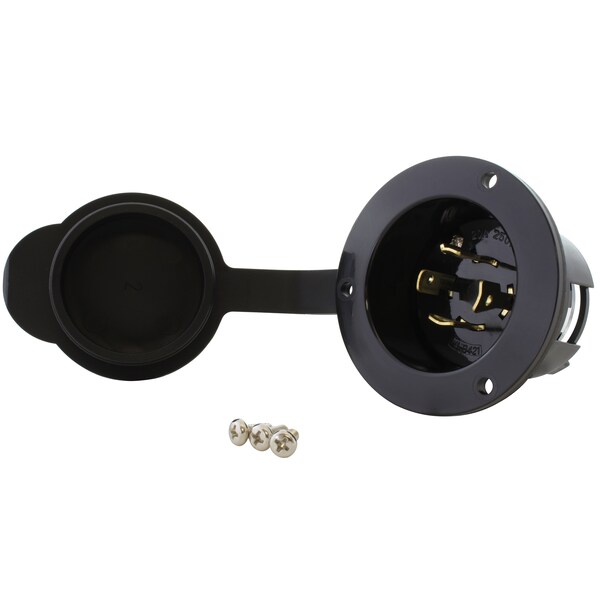

Flanged Locking Inlet, 20 A, 250V AC, Three Phase, Screw Terminals, Black
- Mfr # ASINL1520P-FC
- Zoro # G710113158
Key Features
Specifications
Product Information
- MFR #
- ASINL1520P-FC
- Zoro #
- G710113158
- UPC #
- 819145023016
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Flanged Locking Inlet
- Current Rating
- 20 A
- Voltage Rating
- 250V AC
- Phase
- Three
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Cover Type
- Flip-Up Cover
- Flange Type
- Flanged
- Standards
- UL, cULus Listed
- Material
- PVC
- Wattage
- 8660W
- Application
- Flanged Inlet Wiring Device
Description
This AC WORKS brand inlet wiring device is a heavy‐duty industrial and commercial‐grade power inlet featuring a weather cover for added protection in harsh environments. The inlet uses a NEMA L15‐20P 20‐amp, 250‐volt 3‐phase locking configuration, making it ideal for transfer switches, industrial equipment, and high‐power input applications. It supports 12 AWG or 10 AWG copper wire, providing a secure and reliable connection for demanding installations. The flange‐mount design requires a 2.25 in. (57.15 mm) to 2.5 in. (63.5 mm) hole saw size. This wiring device conforms to cULus E237606 and supports a maximum operating power of 8,660 watts. A 1‐year limited warranty is included with DIY products.
- NEMA L15‐20P 20A 250V 3‐phase locking power inlet
- Weather‐covered industrial/commercial flange‐mount design
- Works with 12 AWG or 10 AWG copper wire
- Maximum operating power: 8,660 watts
- Mounting hole saw size: 2.25"-2.5"
- cULus E237606 listed
- Includes #2 size screws
- 1‐year limited warranty
