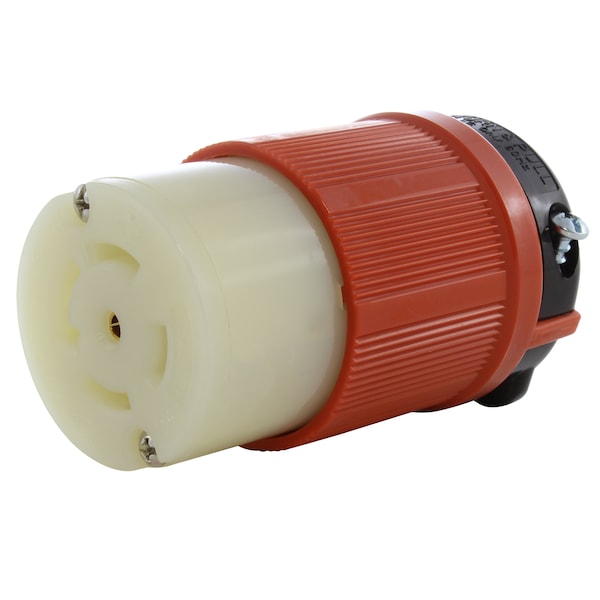

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Orange
Mfr # ASL2130R
Zoro # G510113167
product price:Â
$
44.15
/ea
Sold in multiples of 2 for $88.30
Key Features
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ASL2130R
- Zoro #
- G510113167
- UPC #
- 819145024518
- Country of Origin
- Taiwan, Province of China
Dimensions
- For Maximum Cable Diameter
- 1.125 in
Details
- Item
- Locking Connector
- NEMA Receptacle Configuration
- L21-30R
- Current Rating
- 30 A
- Voltage Rating
- 120/208V AC
- Phase
- Three
- Number of Poles
- 4
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Shrouded
- Yes
- Grounding
- Grounded
- Housing Color
- Orange
- Cap Type
- No Cap
- Standards
- ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498
- Resistance Properties
- Chemical Resistant, Impact Resistant, Weather Resistant
- Weight
- 0.5 lb
- IP Rating
- IP69K
- Flange Material
- Nylon
- Wattage
- 10800W
- Application
- Female Connector Wiring Device
- Number of Female Connectors
- 1
Description
This AC WORKS brand NEMA L21-30R wiring device is made of a very durable construction able to withstand impacts, chemicals, and weather. It features a weather-tight seal and strain relief structure with SJT, SJO, SOO, STW, 12/5, 10/5, or 8/5 cables.
