Shop LEVITON

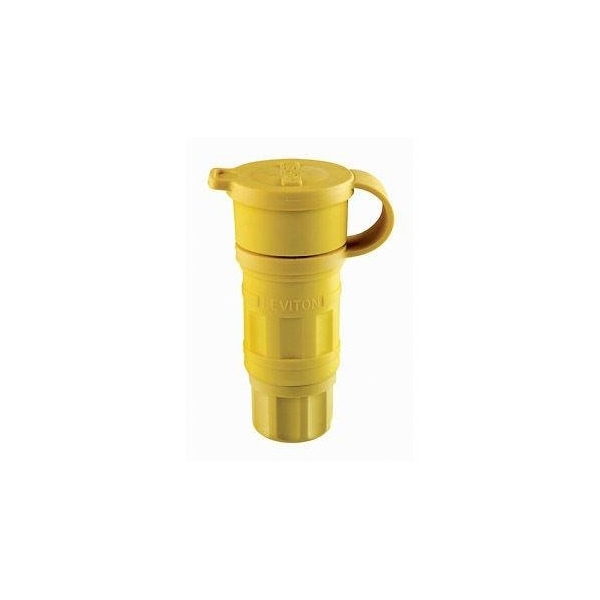

Watertight Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # 15W48

  • Zoro # G616045577

product price:
$
47.79
/ea

Key Features

NEMA Receptacle Configuration
6-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
15W48
Zoro #
G616045577
UPC #
078477848272
Country of Origin
Mexico
Item
Watertight Straight Blade Connector
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
Flip-Up Cap
IP Rating
IP66, IP67, IP69K
Standards
ANSI, CSA, NEMA, NOM, UL498
Resistance Properties
Acid, Alkalies, Water Resistant
Maximum Operating Temperature
60 Degrees C
For Environment
Wet
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Market
Industrial
Housing Material
EPTR Rubber
UL 94 Flammability Rating
V-2
Power Indicating Light
No
Series
Molex (Woodhead)

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Corrosion Resistant, Watertight, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type Press-On Cap, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.38 in, Grounding Grounded, Horsepower Rating Not Applicable
