Shop ACORN CONTROLS

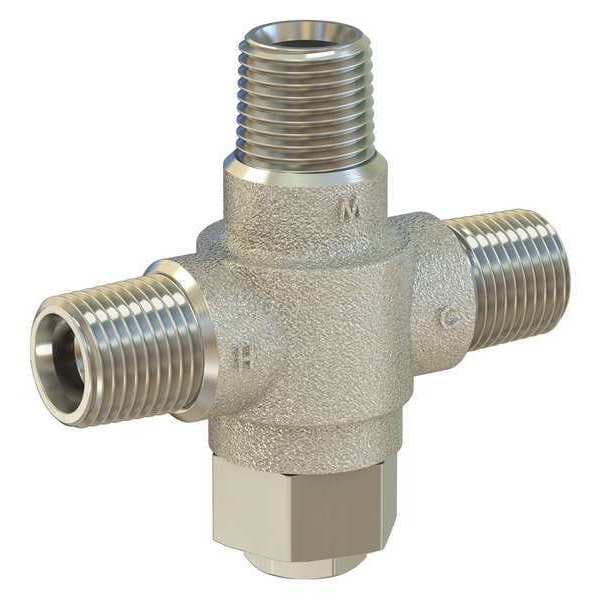

Tempering Valve, Brass, 4.5 gpm Flow Rate

  • Mfr # ST70CP-12

  • Zoro # G7881846

product price:
$
93.19
/ea

Key Features

Inlet Size
1/2 in
Outlet Type
NPT
Flow Rate
4.5 gpm
Inlet Type
NPT
Standards
ANSI Z358, ASSE 1071, CSA B125.3, cUPC Listed, NSF/ANSI 61
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ST70CP-12
Zoro #
G7881846
UPC #
883232418658
Country of Origin
Mexico
Item
Thermostatic Mixing Valve
Outlet Type
NPT
Flow Rate
4.5 gpm
Inlet Type
NPT
Standards
ANSI Z358, ASSE 1071, CSA B125.3, cUPC Listed, NSF/ANSI 61
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Compliance
CSA, IAPMO
Inlet Temperature (Cold)
35 Degrees to 80 Degrees F
Body Material
Brass
Temp. Range
85 Degrees to 115 Degrees F
For Use With
Lavatories
Max. Pressure
125 psi
Includes
Integral Check Valves
Valve Type
Thermostatic
Inlet Connection Type - Hot
NPT
Seal Material
EPDM
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Temperature - Maximum Cold
80 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Pressure - Maximum
125 psi
Coefficient of Volume (Cv)
0.7
Inlet Connection Type - Cold
NPT
Inlet Temperature - Minimum Hot
5 Degrees F
For Media
Hot Water
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Cold
35 Degrees F
Operating Temperature - Minimum Outlet
85 Degrees F
Operating Pressure - Minimum
45 psi
Outlet Connection Type
NPT

Description

Thermostatic Mixing Valve, Flow Rate 4.5 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 85 Degrees to 115 Degrees F, Max. Pressure 125 psi, Overall Height 3 1/4 in, Overall Width 3 1/4 in, Inlet Temperature (Cold) 35 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Lavatories, Includes Integral Check Valves, Standards ANSI Z358, ASSE 1071, CSA B125.3, cUPC Listed, NSF/ANSI 61, Compliance CSA, IAPMO
