Shop ACTION PUMP

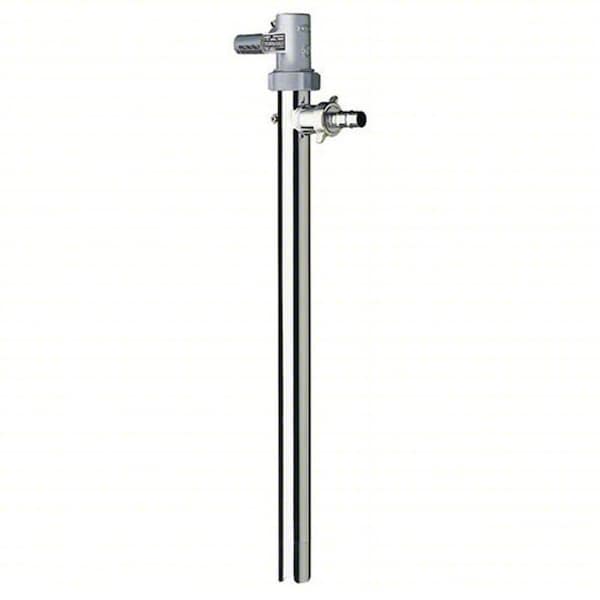

Drum Pump, 120 psi Maximum Air Pressure

  • Mfr # ACTFDAAIR

  • Zoro # G407909347

product price:
$
1,747.99
/ea
Free Shipping & Returns

Key Features

For Media Type
R
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
32 gpm
Max. Viscosity
1,200 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACTFDAAIR
Zoro #
G407909347
UPC #
791885902373
Country of Origin
United States

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Spout Connection Size
1 in
Spout Length
4 in
Bung Connection Dia.
2 in
Air Outlet Size
1/4 in
Air Inlet Size
1/4" NPT
Overall Length
39 in
Height Above Container
10 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in
Wire Rope Length
39 in
Length
39 in

Details

Item
Drum Pump
For Media Type
R
Max. Flow Rate
32 gpm
Max. Viscosity
1,200 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
PTFE, Stainless Steel
Includes Suction Tube
Yes
For Use With
6PFN6-63MM BUNG
Discharge Tube Outlet ID
7/8 in
Discharge Tube Outlet OD
1 in
Adapter Material
Polypropylene
Pump Connection ID
2 in
Includes
Pump, Air motor,
Self-Priming
Yes
Air Consumption
17 cfm
Metered
No
Motor HP
1/2 hp
Max. Air Pressure
120 psi
Pump Connection OD
2 in
Pump Connection Type
NPT
Seal Material
PTFE
For Container Type
Drum
Duty Cycle
Continuous
Variable Speed
Yes
Max. Fluid Temp.
212 Degrees F
Agency Compliance
FDA, EX
Includes Spout
No
Compatible Chemicals
X
Includes Nozzle
No
Spout Material
Stainless Steel
Max. Head - Pumps
12 ft
Noise Level
70 dB
Motor Enclosure
Explosion proof
Max. Oil Flow
25 gpm
Nozzle Operation
Manual
Power Source
Air
Spout Connection Type
Hose Barb
Adapter Connection Type
2" NPT
Includes Bung Adapter
Yes
Runs Dry
No
Includes Discharge Hose
Yes
Max. Head Pressure
20 psi
Motor RPM
9,000 RPM
Housing Finish
Annodized
Explosion Proof
Yes
Pump Ratio
1:1
Discharge Connection Type
Hose Barb
Min. Air Pressure
20 psi
Features
Silencers
Housing Material - Pumps
Stainless steel, PTFE
Food Grade
Yes
Min. Operating Temp.
35 Degrees F
Maximum Air Pressure
120 psi
Pressure Ratio
1:1
Minimum Fluid Temperature
35 Degrees F
Housing Material
Stainless Steel/PTFE
Adapter Connection Standard
NPT
Chemical Compatibility
Maximum Fluid Temperature
212 Degrees F
Maximum Outlet Pressure
20 psi
Wetted Material
PTFE/Stainless Steel
Maximum Head
12 ft
Maximum Oil Flow
25 gpm
Motor Horsepower
1/2 hp
Meter Type Included
No Meter Included
Motor Speed
9,000 RPM
Maximum Head Pressure
20 psi
Maximum Viscosity
1,200 cps
Standards
EX, FDA
Minimum Air Pressure
20 psi
Not Recommended Chemicals
Maximum Flow Rate
32 gpm
Air Inlet Connection Type
NPT
Power Source - TS Only
Air
Power Source - old
Air

Description

Drum Pump, Max. Air Pressure 120 psi, Spout Connection Size 1 in, Suction Tube Material Not Applicable, Self-Priming Yes, Length 39 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Features Silencers, Spout Length 4 in, Food Grade Yes, Thermal Protection Not Applicable, Air Outlet Size 1/4 in, Bung Connection Dia. 2 in, Air Consumption 17 cfm, Hose Length Not Applicable, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Motor Enclosure Explosion proof
