Shop ACTION PUMP

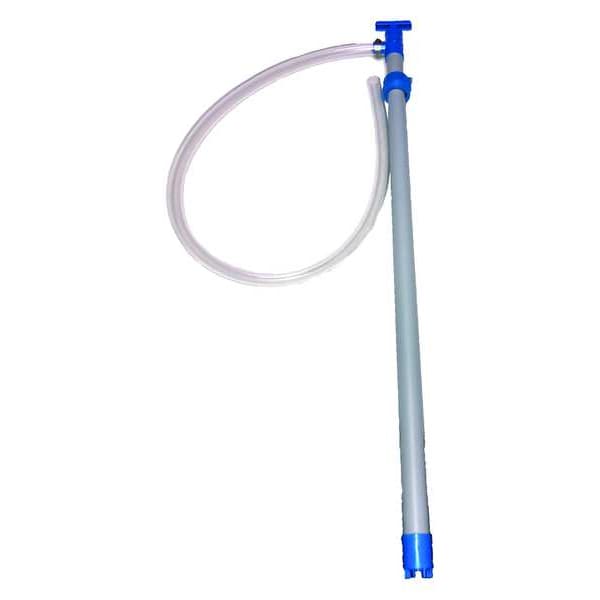

Hand Drum Pump, Piston, PVC, 5 gpm, 10 psi

  • Mfr # ACT2873

  • Zoro # G5778107

product price:  $66.39
/ea

Key Features

Action Type
Piston
For Media Type
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
28 oz per stroke
Max. Viscosity
1,500 SUS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACT2873
Zoro #
G5778107
UPC #
-
Country of Origin
United States

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Discharge Size FPT (In.)
1
Length
44"
Inlet Size
1-1/2"
Manufacturers Warranty Length
90 days
Hose Length
3 ft
Min. Length
1 ft.
Hose Inside Dia.
1 in
Discharge Tube Length
36"
Suction Tube Length
38 in
Adapter Dia.
2"
Bung Connection Dia.
2 in
Height Above Container
8 3/8 in
Spout Connection Size
1 in
Hose Outside Dia.
1 1/8 in
Overall Width
4-5/8 in
Overall Height
2-13/16 in
Overall Diameter
1-1/2 in
Hose Inside Diameter
1 in
Suction Tube Length - Maximum
38 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 1/8 in

Details

Item
Hand Pump
Action Type
Piston
For Media Type
Max. Flow Rate
28 oz per stroke
Max. Viscosity
1,500 SUS
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
PVC
Includes Suction Tube
Yes
For Use With
Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids
Discharge Tube Outlet ID
7/8 in
Hose Tube Material
PVC
Discharge Tube Outlet OD
1 in
Self-Priming
Yes
Discharge Tubing Material
PVC
Suction Tube Material
PVC
Ounces per Stroke
28 oz.
Adapter Type
Bung
Includes
Hose Clamp
Suction Tube Type
Tube
Piston Material
PVC
Adapter Material
PVC
Metered
No
Features
Good Chemical Resistance
Max. Flow GPM
5
Agency Compliance
ISO 22241-3
Seal Material
PVC
Min. Operating Temp.
35 Degrees F
Spout Material
PVC
Suction Tube ID
3/4 in
Max. Fluid Temp.
115 Degrees F
Compatible Chemicals
Runs Dry
Yes
Power Source
Manual
Food Grade
No
Includes Bung Adapter
Yes
Housing Material - Pumps
PVC
Suction Tube OD
1 in
Not Recommended Chemicals
Acetone, Anhydrous Ammonia, Brake Fluid, Ethyl Acetate, Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Lacquer Thinners, Lithium Grease, Paint Thinner, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%, Toluene, Trichlorethylene 50%, Turpentine, Xylene
Hose Cover Material
PVC
Max. Head - Pumps
3 ft
Includes Nozzle
No
Includes Spout
Yes
For Container Type
Bucket, Drum
Max. Head Pressure
3 psi
Includes Discharge Hose
Yes
Pump Connection ID
1 1/2 in
Max. Outlet Pressure
5 psi
Adapter Connection Type
MNPT
Gear Lube
NT
Static Protection
Not Groundable
Wetted Material
PVC
Adapter Connection Standard
MNPT
Maximum Viscosity
1,500 SUS
Maximum Fluid Temperature
115 Degrees F
Maximum Head
3 ft
Chemical Compatibility
Container Cover Type Included
No Cover Included
Maximum Head Pressure
3 psi
Pump Technology
Piston
Mount Type
Bung
Includes Follower Plate
No Follower Plate Included
Minimum Operating Temperature
35 Degrees F
Maximum Flow Rate
28 oz per stroke
Housing Material
PVC
Maximum Outlet Pressure
5 psi
Meter Type Included
No Meter Included
Duty Cycle
Continuous
Power Source - TS Only
Manual

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size 1 in, Self-Priming Yes, Metered No, Hose Length 3 ft, Includes Discharge Hose Yes, Piston Material PVC, Features Good Chemical Resistance, Housing Finish Not Applicable, Seal Material PVC, For Use With Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids, Adapter Connection Type MNPT, For Container Type Bucket, Drum, Hose Cover Material PVC, Includes Bung Adapter Yes, Includes Nozzle No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
