Shop FILL-RITE

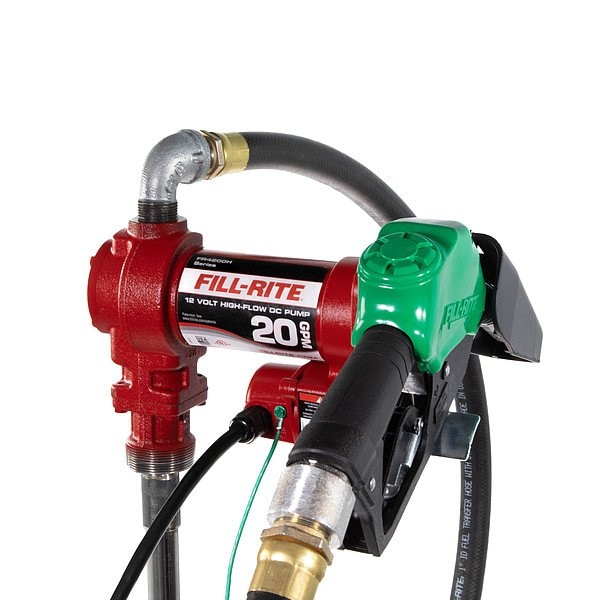

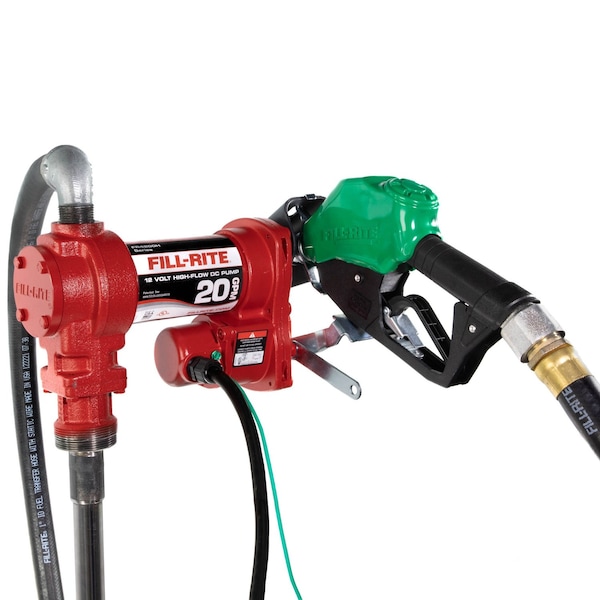

Electric Drum Pump, Cast Iron, 12 V DC

  • Mfr # FR4210HD
  • Zoro # G522785543
product price:
$
680.99
/ea
Free Shipping & Returns

Key Features

Maximum Head
37 ft
Cord Length
18 ft
Features
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance
Hose Tube Material
Nitrile
Static Protection
Grounding Line Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4210HD
Zoro #
G522785543
UPC #
089404248553
Country of Origin
United States

Dimensions

Cord Length
18 ft
For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Hose Inside Diameter
1 in
Hose Length
12 ft
Spout Length
6 1/2 in
Adapter Connection Diameter
2 in
Overall Length
13 in
Hose Outside Diameter
1 3/8 in
Suction Tube Length
34 1/2 in
Spout Discharge Size
1 in
Wire Rope Length
13 in
Length
13 in
Fits Chest Size
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance

Details

Maximum Head
37 ft
Features
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance
Hose Tube Material
Nitrile
Static Protection
Grounding Line Included
Includes Spout
Yes
Full Load Current
19 A
Minimum Fluid Temperature
-40 Degrees F
Nozzle Fluid Compatibility
Diesel
Suction Tube OD
1 5/16 in
Power Source - TS Only
Corded Electric
Duty Cycle
30 Minutes On/30 Minutes Off
Hose Cover Material
Neoprene
Hazardous Location Class
Class I/Division 1
Maximum Outlet Pressure
16 psi
Suction Tube ID
1 3/16 in
Includes Nozzle
Yes
Maximum Oil Flow
20 gpm
Discharge Connection Type
FNPT
Maximum Flow Rate
20 gpm
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene, Mineral Spirits
Rated Voltage
12 V DC
Mount Type
Bung
Nozzle Operation
Automatic
Includes Bung Adapter
Yes
Standards
cUL, UL Listed
Includes Follower Plate
No Follower Plate Included
Pump Technology
Vane
Item
Electric Drum Pump
Includes Discharge Hose
Yes
Discharge Tube Outlet ID
1 in
Wetted Material
Buna-N/Ceramic/Cork/Fluorocarbon/Stainless Steel/Steel/Thermoset
For Container Type
Tank
Self-Priming
Yes
Container Type Included
Drum
Maximum Fluid Temperature
150 Degrees F
Pump Connection ID
3/4 in
Nozzle Material
Aluminum
Includes
Hose, Installation Components
Maximum Viscosity
4 cSt
Adapter Connection Standard
MNPT
Housing Material
Cast Iron
Container Cover Type Included
No Cover Included
Includes Suction Tube
Yes
Motor Speed
2,600 RPM
Meter Type Included
No Meter Included
Motor Horsepower
1/4 hp
Pump Connection OD
1 1/8 in
Suction Tube Material
Steel
Variable Speed
No
Thermal Protection
Yes
Spout Material
Aluminum
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Power Source
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Discharge Connection Type FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
