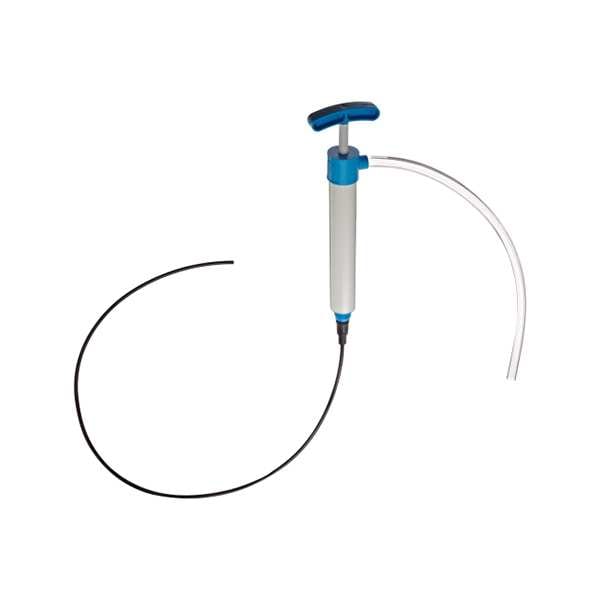

Hand Drum Pump, Piston, PVC, 9/16In OD

Mfr # 7009
Zoro # G3550504

35.29

Key Features

Action Type

Piston

For Media Type

For Container Size

5 gal

Max. Flow Rate

5 oz per stroke

Max. Viscosity

650 cps

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 7009
Zoro #: G3550504
UPC #: 791885070096
Country of Origin: United States

Dimensions

For Container Size: 5 gal
Discharge Tube Length: 22"
Inlet Size: 1-1/2"
Hose Length: 1 13/16 ft
Adapter Dia.: 2"
Suction Tube Length: 38 in
Overall Length: 46"
Manufacturers Warranty Length: 1 yr.
Hose Inside Dia.: 1/2 in
Height Above Container: 8 1/2 in
Hose Outside Dia.: 5/8 in
Spout Connection Size: 5/8 in
Spout Length: 36 in
Bung Connection Dia.: 2 in
Suction Tube Length - Minimum: 9 in
Suction Tube Length - Maximum: 38 in
Adapter Connection Diameter: 2 in
Hose Outside Diameter: 5/8 in
Hose Inside Diameter: 1/2 in

Details

Item: Hand Pump
Action Type: Piston
For Media Type: Ammonia,Ammonium Hydroxide,Antifreeze,Bleach,Chromic Acid,DEF,Diesel Fuel,Ethylene Glycol,Fertilizers,Formaldehyde,Formic Acid,Fungicides,Glycerin,Herbicides,Hydraulic Oil,Hydrochloric Acid,Hydrofluoric Acid,Isopropanol,Methanol,Motor Oil,Naphtha,Nitric Acid,Paint,Pesticides,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Stoddard Solvent,Water,Windshield Washer Fluid
Max. Flow Rate: 5 oz per stroke
Max. Viscosity: 650 cps
Diesel Exhaust Fluid Compatible: Yes
Wetted Materials: Neoprene, Polyethylene, PVC
Includes Suction Tube: Yes
For Use With: For Detergents, Most Acids, Chlorines, Oils, D-limonene, Waxes, Alkalis, Water, Soaps
Hose Tube Material: PVC
Discharge Tube Outlet ID: 1/2 in
Discharge Tube Outlet OD: 9/16 in
Piston Material: PVC
Ounces per Stroke: 5 oz.
Metered: No
Seal Material: PVC
Discharge Tubing Material: PVC
Suction Tube Type: polyethylene
Type: Piston Action
Gasket Material: PVC
pH Range: 4 to 11
Adapter Type: Bung
Features: 1/4 in Suction Hose, All PVC Construction Including Seal, Bonded PVC Discharge Hose, Fits Almost Anywhere
Adapter Material: PVC
Suction Tube Material: PVC
Agency Compliance: ISO 22241-3
Self-Priming: Yes
Max. Flow GPM: 2
Includes Spout: Yes
Food Grade: No
Hose Cover Material: PVC
Compatible Chemicals: Ammonia (Liquids),Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze (Coolant),Chromic Acid 30%,Chromic Acid 5%,DEF,Deionized Water,Diesel Fuel,Ethylene Glycol,Fertilizers,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Fungicides,Glycerin,Herbicides,Hydraulic Oils (Petroleum),Hydraulic Oils (Synthetic),Hydrochloric/Muriatic Acid (20%),Hydrochloric/Muriatic Acid (37%),Hydrofluoric Acid (20%),Isopropyl (Isopropanol),Methyl (Methanol),Motor Oil,Naphtha,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Paint,Pesticides,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Sodium Hypochlorite/Bleach (to 20%),Stoddard Solvent (Mineral Spirits),Windshield Washer Fluid
Min. Operating Temp.: 35 Degrees F
Not Recommended Chemicals: Acetone, Brake Fluid, Ethyl Acetate, Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Lacquer Thinners, Lithium Grease, Paint Thinner, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%, Toluene, Trichlorethylene 50%, Turpentine, Xylene
Pump Connection ID: 1 1/2 in
Power Source: Manual
Max. Head - Pumps: 3 ft
Runs Dry: Yes
Spout Material: PVC
Housing Material - Pumps: PVC
Includes Discharge Hose: Yes
Includes Nozzle: No
Suction Tube ID: 3/16 in
For Container Type: Bucket
Max. Head Pressure: 3 psi
Includes Bung Adapter: Yes
Max. Fluid Temp.: 140 Degrees F
Suction Tube OD: 1/4 in
Gear Lube: NT
Adapter Connection Type: MNPT
Max. Outlet Pressure: 5 psi
Maximum Flow Rate: 5 oz per stroke
Wetted Material: PVC
Adapter Connection Standard: MNPT
Mount Type: Bung
Pump Technology: Piston
Maximum Fluid Temperature: 140 Degrees F
Maximum Viscosity: 650 cps
Meter Type Included: No Meter Included
Maximum Outlet Pressure: 5 psi
Duty Cycle: Continuous
Maximum Head: 3 ft
Includes Follower Plate: No Follower Plate Included
Chemical Compatibility: Ammonia Liquid,Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze Coolant,Bleach,Chromic Acid 30%,Chromic Acid 5%,DEF,Deionized Water,Diesel Fuel,Ethylene Glycol,Fertilizers,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Fungicides,Glycerin,Herbicides,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 20%,Isopropanol,Methanol,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Pesticides,Petroleum Oil,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Synthetic Oil,Windshield Washer Fluid
Housing Material: PVC
Static Protection: Not Groundable
Container Cover Type Included: No Cover Included
Minimum Operating Temperature: 35 Degrees F
Maximum Head Pressure: 3 psi
Power Source - TS Only: Manual
Power Source - old: Manual

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size 5/8 in, Self-Priming Yes, Metered No, Hose Length 1 13/16 ft, Includes Discharge Hose Yes, Piston Material PVC, Features 1/4 in Suction Hose, All PVC Construction Including Seal, Bonded PVC Discharge Hose, Fits Almost Anywhere, Housing Finish Not Applicable, Seal Material PVC, For Use With For Detergents, Most Acids, Chlorines, Oils, D-limonene, Waxes, Alkalis, Water, Soaps, Adapter Connection Type MNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
