Action Pump

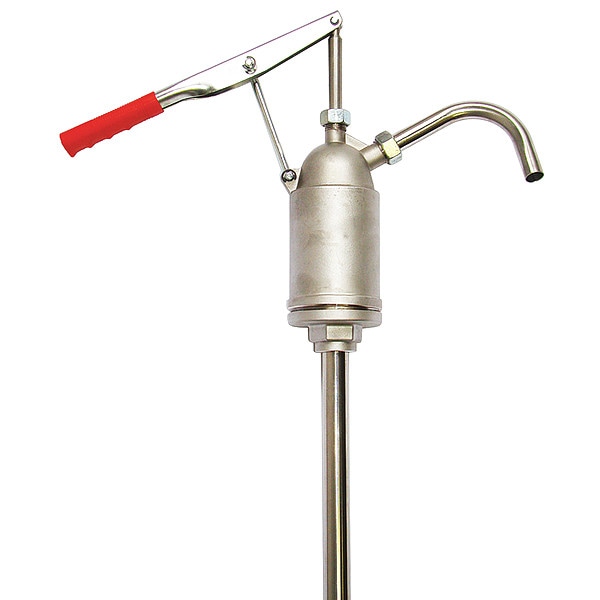

Hand Drum Pump, Stainless Steel, 3/4In OD

Action Pump Hand Drum Pump, Stainless Steel, 3/4In OD 5500
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$231.00
  • Suction Tube Length: 41 in
  • Action Type: Lever
  • For Media Type: Acetic Acid, Ammonium Hydroxide, Antifreeze, Biodiesel, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Cyclohexane, Diesel Fuel, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Methyl Chloride, Motor Oil, Nitric Acid, Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Trichlorethylene, Water, Xylene
See full product details
This item ships free.
Total: $231.00

Action Pump #5500 Specifications

  • Suction Tube Length: 41 in
  • Action Type: Lever
  • For Media Type: Acetic Acid, Ammonium Hydroxide, Antifreeze, Biodiesel, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Cyclohexane, Diesel Fuel, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Methyl Chloride, Motor Oil, Nitric Acid, Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Trichlorethylene, Water, Xylene
  • For Container Size: 30 gal, 55 gal
  • Max. Flow Rate: 12 oz per stroke
  • Max. Viscosity: 650 cps
  • Wetted Materials: 304 Stainless Steel, PTFE
  • Suction Tube ID: 11/32 in
  • Max. Fluid Temp.: 140 Degrees F
  • Food Grade: No
  • Discharge Tube Outlet ID: 3/4 in
  • Includes: 2 in Bung Adapter
  • Suction Tube OD: 1 in
  • Metered: No
  • Discharge Tube Outlet OD: 7/8 in
  • Runs Dry: Yes
  • Diesel Exhaust Fluid Compatible: Yes
  • Includes Suction Tube: Yes
  • Piston Material: PTFE
  • Seal Material: PTFE
  • Type: Lever Action
  • Outlet Size: 3/4"
  • Manufacturers Warranty Length: 1 yr.
  • Features: All Stainless and PTFE Construction, Three Piece Intake Tube
  • Discharge Tube Outlet OD Size: 3/4"
  • Discharge Tubing Material: 304 Stainless Steel
  • GPM: 5
  • Adapter Type: Bung
  • Max. Temp.: 140 Degrees F
  • Item: Hand Operated Drum Pump
  • For Use With: For Viscous Liquids, Detergents, Most Acids, Oils, Waxes, Alkalis, Water, and Soaps
  • Application: For Viscous Liquids, Detergents, Most Acids, Oils, Waxes, Alkalis, Water, and Soaps
  • Max. Liquid Temp.: 140 Degrees F
  • Gasket Material: PTFE
  • Suction Tube Outlet O.D. Size: 1"
  • Suction Tube Type: 304 Stainless Steel
  • Housing Material: 304 Stainless Steel
  • Overall Length: 54"
  • Max. Head: 3 ft.
  • Max. Pressure: 20 psi
  • Max. GPM for Water: 9
  • Adapter Material: Polypropylene
  • Inlet Size: 1"
  • pH Range: 5 to 9
  • Adapter Dia.: 2"
  • Discharge Tube Length: 6"
  • Ounces per Stroke: 12 oz.
  • Agency Compliance: ISO 22241-3
  • Suction Tube Material: Stainless Steel
  • Self-Priming: Yes
  • Bung Connection Dia.: 2 in
  • Max. Head Pressure: 3 psi
  • Spout Material: PVC
  • Spout Connection Size: 49/64 in
  • For Container Type: Drum
  • Compatible Chemicals: Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Additional Chemicals (If needed by supplier), Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
  • Not Recommended Chemicals: Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)
  • Height Above Container: 19 3/4 in
  • Min. Operating Temp.: 35 Degrees F
  • Housing Material - Pumps: 304 Stainless Steel
  • Includes Discharge Hose: No
  • Max. Head - Pumps: 3 ft
  • Includes Spout: Yes
  • Pump Connection ID: 1 in
  • Spout Length: 5 in
  • Includes Nozzle: No
  • Power Source: Hand Operated
  • Includes Bung Adapter: Yes
  • Gear Lube: NT
  • Adapter Connection Type: MNPT
  • Max. Outlet Pressure: 5 psi
  • Grease: NT
  • Country of Origin (subject to change): Taiwan, Province of China
Feedback Help us improve our product information

Description

Hand Operated Drum Pump, Action Type Lever, Wetted Materials 304 Stainless Steel, PTFE, pH Range 5 to 9, Seal Material PTFE, Gasket Material PTFE, Discharge Tubing Material 304 Stainless Steel, Piston Material PTFE, For Use On 15, 30 and 55 gal. Drums, GPM 5, Maximum Head 3 ft., Max. Pressure 20 psi, Max. Temp. 140 Degrees F, Ounces per Stroke 12 oz., Max. Viscosity 650 cps, Max. GPM for Oil 5, Max. GPM for Water 9, Inlet Size 1 In., Outlet Size 3/4 In., Discharge Tube Outlet OD Size 3/4 In.
