Shop ACTION PUMP

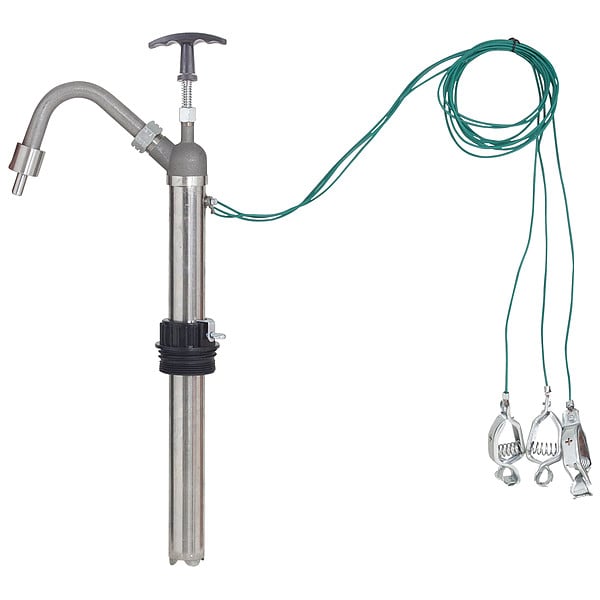

HandPump, Piston, SS, 10oz/stroke

  • Mfr # THP-5-STGRND

  • Zoro # G404836929

product price:  $179.99
/ea
Free Shipping & Returns

Key Features

Action Type
Piston
For Container Size
5 gal
Max. Viscosity
2,000 SUS
Wetted Materials
316 Stainless Steel, PTFE
For Use With
Wide Variety of Media
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
THP-5-STGRND
Zoro #
G404836929
UPC #
791885902274
Country of Origin
India

Dimensions

For Container Size
5 gal
Height Above Container
12 in
Bung Connection Dia.
2 in
Adapter Connection Diameter
2 in
Spout Length
6 in
Spout Connection Size
1 in
Suction Tube Length - Maximum
37 in

Details

Item
Hand Pump
Action Type
Piston
Max. Flow Rate
10 oz per stroke
Max. Viscosity
2,000 SUS
Wetted Materials
316 Stainless Steel, PTFE
For Use With
Wide Variety of Media
Features
Heavy-Duty Bonding and Grounding Wires Prevent Hazardous Static Charge. Wires Are Secured by Locknut and Have Heavy-Duty Alligator Clips, Pump Body Made from 316 Stainless Steel with PTFE Piston and PTFE Sealing Gasket Which Makes it Suitable for use with Wide Variety of Media, Pump Includes a 2 in Bung Adaptor with Dual Threads for use with Metal and Plastic Drums, Self-Priming Vertical Lift Pump with Exceptional Chemical Resistance
Piston Material
PTFE
Includes
2 in Bung Adaptor with Dual Threads
Self-Priming
Yes
Min. Operating Temp.
140 Degrees F
Housing Material - Pumps
316 Stainless Steel
Includes Bung Adapter
Yes
Compatible Chemicals
Acetone, Adblue, Benzene, DEF, Diesel, Kerosene, Light oil (upto SAE 40) etc, Naptha, Photographic Chemicals/Solvents, Thinners, Urea
For Container Type
Drum
Includes Spout
Yes
Maximum Fluid Temperature
140 Degrees F
Includes Follower Plate
No Follower Plate Included
Minimum Operating Temperature
140 Degrees F
Discharge Connection Type
Tube
Maximum Head
3 ft
Maximum Outlet Pressure
5 psi
Discharge Tube Outlet ID
5/8 in
Discharge Tube Outlet OD
3/4 in
Suction Tube Material
316 Stainless Steel
Seal Material
PTFE
Container Cover Type Included
No Cover Included
Includes Discharge Hose
No
Adapter Material
Stainless Steel
Power Source - TS Only
Manual
Maximum Flow Rate
10 oz per stroke
Wetted Material
316 SS/PTFE
Meter Type Included
No Meter Included
Chemical Compatibility
Acetone, Benzene, DEF, Diesel, Kerosene, Naptha, Oil, Paint Thinner, Urea
Pump Technology
Piston
Suction Tube OD
1 1/2 in
Static Protection
Grounding Line Included
Includes Nozzle
No
Housing Material
316 Stainless Steel
Duty Cycle
Continuous
Maximum Head Pressure
3 psi
Spout Material
316 Stainless Steel
Includes Suction Tube
Yes
Adapter Connection Standard
MNPT
Maximum Viscosity
2,000 SUS
Mount Type
Bung
Suction Tube ID
1 11/16 in
Power Source
Manual

Description

Hand Pump, Spout Connection Size 1 in, Self-Priming Yes, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material PTFE
