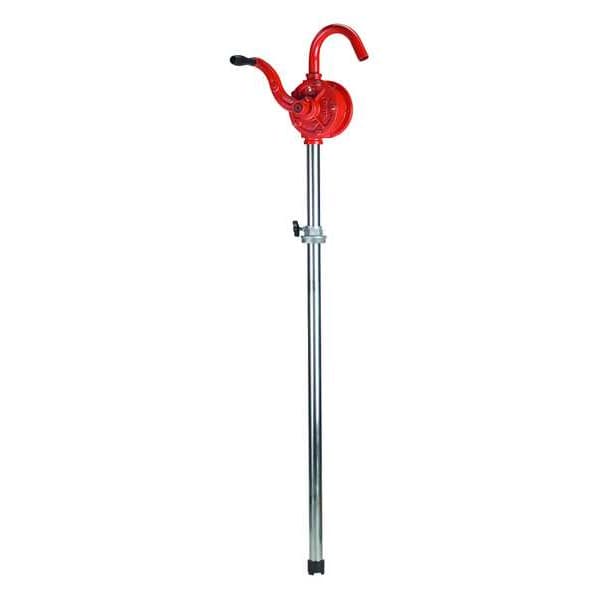

Rotary Barrel Pump, 55gal, 1:18 Pump Ratio

  • Mfr # 55-303

  • Zoro # G1824737

product price:  $91.99
/ea

Key Features

Action Type
Rotary
For Media Type
Hydraulic Oil, Motor Oil
For Container Size
30 gal, 55 gal
Max. Flow Rate
7 oz per stroke
Diesel Exhaust Fluid Compatible
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55-303
Zoro #
G1824737
UPC #
-
Country of Origin
China

Dimensions

For Container Size
30 gal, 55 gal
Suction Tube Length
42 in
Spout Connection Size
3/4 in
Spout Length
11 in
Height Above Container
18 in
Bung Connection Dia.
2 in
Adapter Connection Diameter
2 in
Suction Tube Length - Maximum
42 in
Container Size Included
55 gal

Details

Item
Hand Pump
Action Type
Rotary
For Media Type
Hydraulic Oil, Motor Oil
Max. Flow Rate
7 oz per stroke
Diesel Exhaust Fluid Compatible
No
Wetted Materials
Cast Iron, Plated Steel
Includes Suction Tube
Yes
For Use With
Non-Corrosive Petroleum Based Fluids of Light to Medium Viscosity
Discharge Tube Outlet ID
7/8 in
Discharge Tube Outlet OD
1 1/16 in
Pump Ratio
1:18
Ounces per Stroke
7 oz.
Type
Single Direction
Features
42 in Steel Suction Pipe
Adapter Material
Aluminum
Suction Tube Material
Steel
Self-Priming
Yes
Metered
No
Suction Tube ID
1 3/16 in
Power Source
Manual
Discharge Connection Type
FNPT
Max. Oil Flow
7 oz per stroke
For Container Type
Drum
Includes Nozzle
No
Housing Material - Pumps
Cast Iron
Duty Cycle
Continuous
Includes Spout
Yes
Not Recommended Chemicals
Compatible Chemicals
Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Includes Bung Adapter
Yes
Suction Tube OD
1 1/4 in
Food Grade
No
Spout Material
Steel
Runs Dry
Yes
Includes Discharge Hose
No
Adapter Connection Type
MNPT
Gear Lube
NT
Seal Material
Buna-N
Container Cover Type Included
No Cover Included
Includes Follower Plate
No Follower Plate Included
Adapter Connection Standard
MNPT
Maximum Viscosity
2,000 SUS
Housing Material
Cast Iron
Compatible NLGI Viscosity Grade
Not Specified
Maximum Head Pressure
10 psi
Maximum Outlet Pressure
10 psi
Maximum Oil Flow
7 oz per stroke
Nozzle Material
Cast Iron
Pump Technology
Vane
Nozzle Operation
Manual
Housing Finish
Sand Blasted
Piston Material
Cast Iron
Chemical Compatibility
Petroleum Oil, Synthetic Oil, Motor Oil
Maximum Head
3 1/4 ft
Mount Type
Bung
Static Protection
No Grounding Line Included
Maximum Fluid Temperature
190 Degrees F
Meter Type Included
No Meter Included
Maximum Flow Rate
7 oz per stroke
Wetted Material
Cast Iron/Nitrile
Power Source - TS Only
Manual

Description

Hand Pump, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material Cast Iron, Features 42 in Steel Suction Pipe, Housing Finish Sand Blasted, Seal Material Buna-N, For Use With Non-Corrosive Petroleum Based Fluids of Light to Medium Viscosity, Adapter Connection Type MNPT, Discharge Connection Type FNPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No
