Shop ACTION PUMP

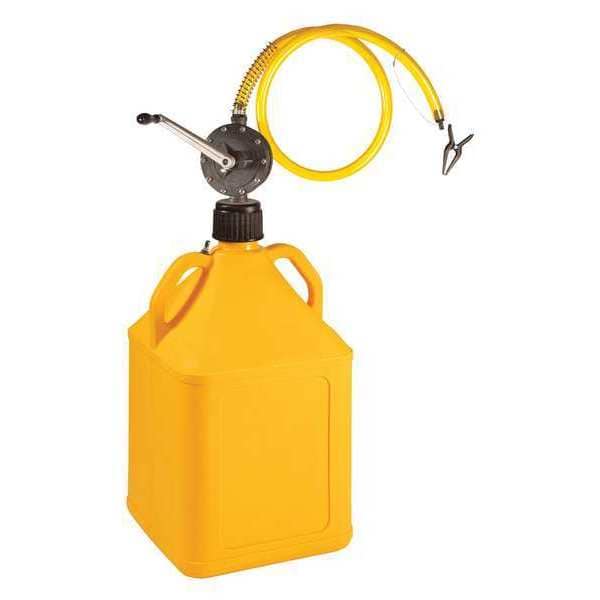

Rotary Barrel Pump, w/15 gal. Yellow Jug

  • Mfr # GASPROY

  • Zoro # G5911179

product price:  $457.99
/ea
Free Shipping & Returns

Key Features

Action Type
Rotary
For Media Type
Ammonia, Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oil, Kerosene, Methanol, Sodium Bicarbonate
For Container Size
15 gal
Max. Flow Rate
10 oz per stroke
Max. Viscosity
900 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GASPROY
Zoro #
G5911179
UPC #
791885905718
Country of Origin
United States

Dimensions

For Container Size
15 gal
Min. Length
1 ft.
Inlet Size
1-1/4"
Discharge Size FPT (In.)
1
Discharge Tube Length
60"
Hose Inside Dia.
3/4 in
Manufacturers Warranty Length
1 yr.
Length
14-1/2"
Suction Tube Length
26 in
Adapter Dia.
3-1/2"
Hose Length
5 ft
Spout Connection Size
1 in
Height Above Container
14 in
Hose Outside Dia.
1 in
Bung Connection Dia.
3-1/2 in
Overall Width
1-1/2 in
Overall Height
38 in
Suction Tube Length - Maximum
26 in
Container Size Included
15 gal
Adapter Connection Diameter
3 1/2 in
Hose Outside Diameter
1 in
Hose Inside Diameter
3/4 in

Details

Item
Hand Pump
Action Type
Rotary
For Media Type
Ammonia, Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oil, Kerosene, Methanol, Sodium Bicarbonate
Max. Flow Rate
10 oz per stroke
Max. Viscosity
900 cps
Diesel Exhaust Fluid Compatible
No
Wetted Materials
PTFE, Ryton, Stainless Steel, Viton
Includes Suction Tube
Yes
For Use With
Chemicals, Diesel Fuel, Fuel Oil, Gasoline, Light Petroleum Products, Mild Acids, Motor Oil
Hose Tube Material
Polyethylene
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
1 in
Discharge Tubing Material
PVC
Adapter Material
Polyethylene
Self-Priming
Yes
Includes
Clamp, Intake Tube
Piston Material
Ryton(R)
Suction Tube Type
Tube
Metered
No
Ounces per Stroke
10 oz.
Suction Tube Material
PVC
Adapter Type
3-1/2" NPT
Seal Material
Viton
Features
Self Priming, comes with clamp on discharge hose to free users hands, fast flow and light weight
Max. Flow GPM
10
Hose Cover Material
Polyethylene
Suction Tube ID
15/16 in
Housing Material - Pumps
Ryton
For Container Type
Bucket
Includes Discharge Hose
Yes
Suction Tube OD
1 1/4 in
Max. Head Pressure
3 psi
Pump Connection ID
1 in
Max. Head - Pumps
12 ft
Not Recommended Chemicals
Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Compatible Chemicals
Anhydrous Ammonia, Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils (Petroleum), Kerosene, Methyl (Methanol), Sodium Bicarbonate (10%)
Spout Material
Polyethylene
Food Grade
No
Includes Spout
Yes
Runs Dry
Yes
Power Source
Manual
Max. Fluid Temp.
140 Degrees F
Min. Operating Temp.
35 Degrees F
Includes Nozzle
No
Includes Bung Adapter
Yes
Max. Outlet Pressure
10 psi
Adapter Connection Type
FNPT
Gear Lube
NT
Housing Material
PPS
Maximum Viscosity
900 cps
Maximum Fluid Temperature
140 Degrees F
Pump Technology
Piston
Minimum Operating Temperature
35 Degrees F
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
Maximum Outlet Pressure
10 psi
Container Type Included
Jug
Duty Cycle
Continuous
Adapter Connection Standard
FNPT
Container Cover Type Included
No Cover Included
Chemical Compatibility
Anhydrous Ammonia, Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Petroleum Oil, Kerosene, Methanol, Sodium Bicarbonate 10%
Maximum Head
12 ft
Static Protection
Not Groundable
Maximum Head Pressure
3 psi
Mount Type
Bung
Maximum Flow Rate
10 oz per stroke
Power Source - TS Only
Manual

Description

Hand Operated Drum Pump, Max. Outlet Pressure 10 psi, Spout Connection Size 1 1/64 in, Self-Priming Yes, Metered No, Hose Length 60 in, Includes Discharge Hose Yes, Piston Material Ryton, Features Self Priming, comes with clamp on discharge hose to free users hands, fast flow and light weight, Seal Material Viton, For Use With Chemicals, Diesel Fuel, Fuel Oil, Gasoline, Light Petroleum Products, Mild Acids, Motor Oil, Adapter Connection Type FNPT, For Container Type Pail
