  5. Dimming Ballast, Electronic, 120VLamp

This item is Discontinued.

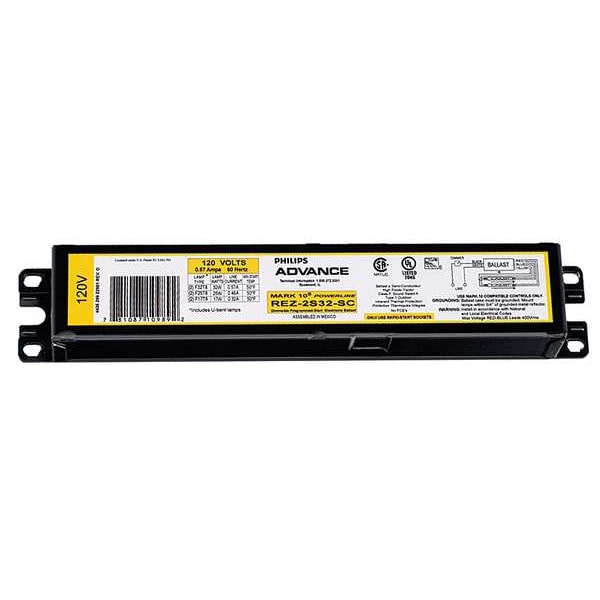

Advance Dimming Ballast, Electronic, 120VLamp REZ-2S32-SC

Dimming Ballast, Electronic, 120VLamp (Discontinued)

  • Mfr # REZ-2S32-SC
  • Zoro # G0278022
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
REZ-2S32-SC
Zoro #
G0278022
UPC #
781087109892
Country of Origin
Mexico

Dimensions

Height
1 1/4 in
Length
9 1/2 in
Width
1 3/4 in

Details

Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Lamp Type
T8
Ballast Max. Lamp Watts
32
Ballast Voltage
120
Ballast Max. Number of Lamps
2
Ballast Start Type
Rapid
Ballast Dimming
Yes
Ballast Dimming Type
Electronic Dimming
Input Watts
15 to 65 W
Ballast Lamp Watts
32
Item
Fluorescent Dimming Ballast
Number of F17T8 Lamps
2
Number of F25T8 Lamps
2
Sound Rating
Better than Class A
Ballast Family
Mark 10(R) Powerline
Min. Starting Temp.
50 Degrees F
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Number of F32T8 Lamps
2
Total Harmonic Distortion
10 %
Wiring Type
Series
Ballast Factor
0.05 to 1
Power Factor
0.99
Fixture Ballast Type
Electronic
Ballast Bulb Type
T8
Standards
CEC Listing CEE Rated, CSA certificate, CSA E NEMA Premium, NOM certificate, RoHS Compliant, UL certificate
Input Voltage
120V AC
Starter Required
No
Dimming Method
0-10V
Sockets Included
No
Dimming Type
Full Continuous Dimming
Max. Bulb Watts
17 W, 25 W, 28 W, 32 W
Thermal Protection
Class P
Number of F32T8(26W) Lamps
2
Number of F32T8U Lamps
2
Dimming Range
100% to 5%
Amps AC
0.57 A
Number of F28T8 Lamps
2
Operating Amps @ 120V
0.57 A
Brand and Series
Mark 10(R) Powerline
Number of F32T8(28W) Lamps
2
Number of Bulbs Supported
2
Number of F32T8(30W) Lamps
2
Frequency
60 Hz
Dimming
Yes
Lamp Types Supported
(2) F17T8, (2) F25T8, (2) F28T8, (2) F32T8, (2) F32T8U
Voltage
120

Description

Mark 10(R) Powerline, Electronic, Fluorescent Dimming Ballast, Ballast Start Type Rapid, Input Voltage 120V AC, Number of Bulbs Supported 2, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, Ballast Bulb Type T8, Dimming Yes, Dimming Type Full Continuous Dimming, Dimming Method 0-10V, Dimming Range 100 Percent to 5 Percent, Min. Starting Temp. 50 Degrees F
