  5. Dimming Ballast, Electronic, 120VLamp

This item is Discontinued.

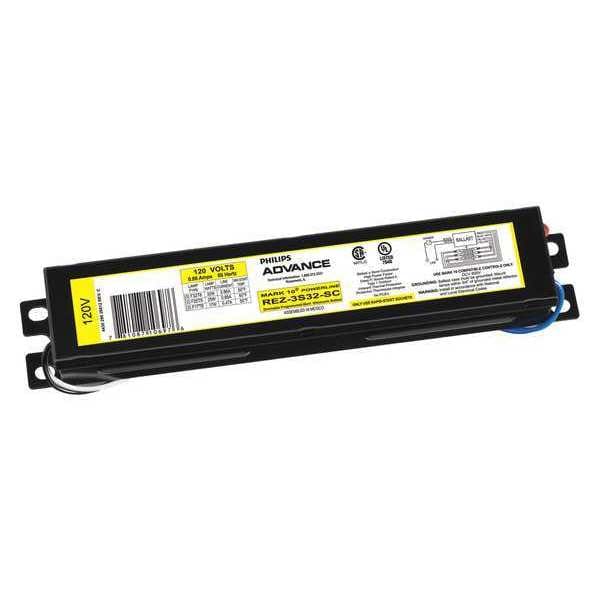

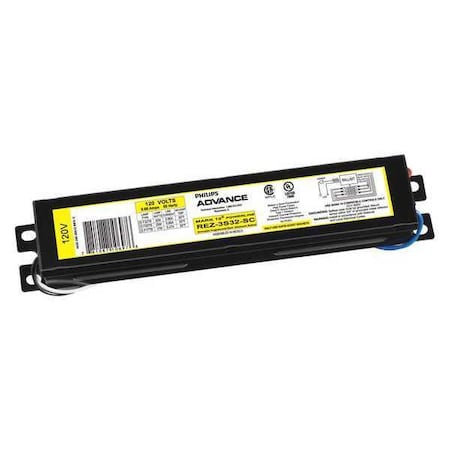

Advance Dimming Ballast, Electronic, 120VLamp REZ-3S32-SC

Dimming Ballast, Electronic, 120VLamp (Discontinued)

  • Mfr # REZ-3S32-SC
  • Zoro # G1658736
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
REZ-3S32-SC
Zoro #
G1658736
UPC #
781087106976
Country of Origin
Mexico

Dimensions

Height
1 1/4 in
Length
9 1/2 in
Width
1 3/4 in

Details

Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Lamp Type
T8
Ballast Max. Lamp Watts
32
Ballast Voltage
120
Ballast Max. Number of Lamps
3
Ballast Start Type
Rapid
Ballast Dimming
Yes
Ballast Dimming Type
Electronic Dimming
Input Watts
20 to 96 W
Item
Fluorescent Dimming Ballast
Min. Starting Temp.
50 Degrees F
Number of F17T8 Lamps
3
Number of F32T8 Lamps
3
Number of F25T8 Lamps
3
Ballast Lamp Watts
32
Sound Rating
Better than Class A
Ballast Family
Mark 10(R) Powerline
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Ballast Factor
0.05 to 0.97
Power Factor
0.99
Total Harmonic Distortion
10 %
Wiring Type
Series
Fixture Ballast Type
Electronic
Ballast Bulb Type
T8
Number of F32T8(30W) Lamps
3
Frequency
60 Hz
Input Voltage
120V AC
Thermal Protection
Class P
Number of F32T8U Lamps
3
Number of F28T8 Lamps
3
Amps AC
0.8 A
Standards
CEC Listing, CEE Rated NEMA Premium, CSA Certificate, RoHS Compliant, UL Certificate
Operating Amps @ 120V
0.8 A
Number of F32T8(26W) Lamps
3
Sockets Included
No
Dimming Method
0-10V
Dimming Type
Full Continuous Dimming
Dimming Range
100% to 5%
Brand and Series
Mark 10(R) Powerline
Number of F32T8(28W) Lamps
3
Starter Required
No
Number of Bulbs Supported
2, 3
Max. Bulb Watts
17 W, 25 W, 28 W, 32 W
Dimming
Yes
Lamp Types Supported
(2) F25T8, (3) F17T8, (3) F28T8, (3) F32T8, (3) F32T8U
Voltage
120

Description

Mark 10(R) Powerline, Electronic, Fluorescent Dimming Ballast, Ballast Start Type Rapid, Input Voltage 120V AC, Number of Bulbs Supported 2, 3, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, Ballast Bulb Type T8, Dimming Yes, Dimming Type Full Continuous Dimming, Dimming Method 0-10V, Dimming Range 100 Percent to 5 Percent, Min. Starting Temp. 50 Degrees F
