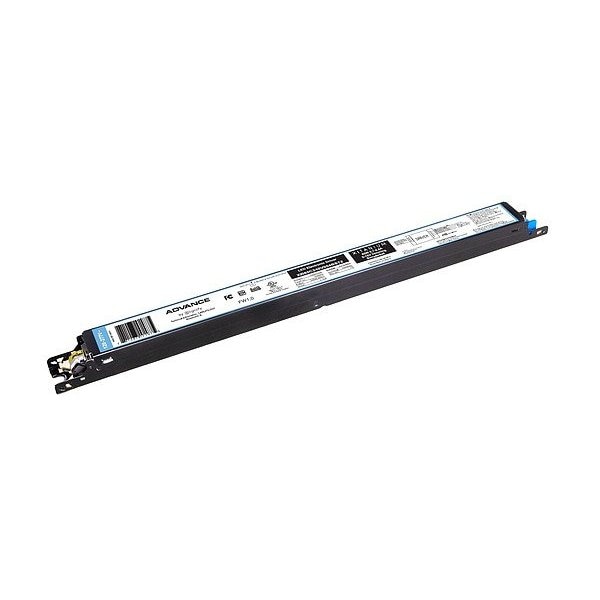

LED Driver, 108 to 305V AC, 85 W

  • Mfr # XI085C240V054BST2M
  • Zoro # G821723307
product price:
$
107.99
/ea
Free Shipping & Returns

Key Features

Output Technology
Programmable
Height
1 in
Output Current
700 to 2400 mA
Case Form Factor
Long
LED Driver Protection
Over-Temperature Protection, Overload Protection, Short-Circuit Protection
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XI085C240V054BST2M
Zoro #
G821723307
UPC #
781087171875
Country of Origin
Mexico

Dimensions

Height
1 in
Width
1 3/16 in
Length
16 11/16 in

Details

Output Technology
Programmable
Output Current
700 to 2400 mA
Case Form Factor
Long
LED Driver Protection
Over-Temperature Protection, Overload Protection, Short-Circuit Protection
Dimming Range
100% to 1%
Power Output - Minimum
0.1 W
Total Harmonic Distortion
15 %
Ouput Constant
Constant Current
Input Current - Minimum
0.36 A
Power Output - Maximum
85 W
Driver Life Expectancy
50,000 hr
Input Voltage
108 to 305V AC
Max. Case Temp.
194 Degrees F
Driver Class
Class 2
Input Power
85 W
Item
LED Driver
Power Factor - Minimum
0.95
Standards
cULus, NOM, RoHS Compliant
Profile
Low Profile
Output Voltage
10 to 54V DC
Input Current - Maximum
0.83 A
Brand and Series
Xitanium
Dimming Method
0-10V
Frequency
50/60 Hz
Dimming Type
Full Continuous Dimming
Min. Ambient Temp.
-40 Degrees F
Max. Ambient Temp.
131 Degrees F

Description

Xitanium, LED Driver, 108 to 305V AC Input Voltage, 10 to 54V DC Output Voltage, 700 to 2400 mA Output Current, 85 W Input Power, 16 11/16 in Length, 1 3/16 in Width, 1 in Height, Case Form Factor Long, Low Profile, Class 2
