  5. PHILIPS ADVANCE 1000 W, 1 Lamp HID Ballast Kit

This item is Discontinued.

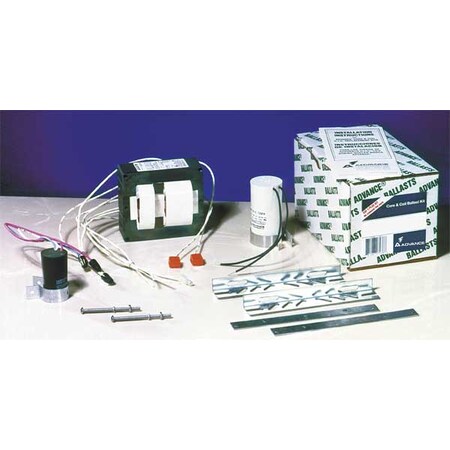

Advance PHILIPS ADVANCE 1000 W, 1 Lamp HID Ballast Kit 71A65F3-001

PHILIPS ADVANCE 1000 W, 1 Lamp HID Ballast Kit (Discontinued)

  • Mfr # 71A65F3-001
  • Zoro # G2461024
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71A65F3-001
Zoro #
G2461024
UPC #
781087085813
Country of Origin
Mexico

Dimensions

Height
4 1/4 in
Dimension A
2 13/16 in
Length
6 in
Width
4 1/2 in
Dimension B
4 1/2 in

Details

Item
HID Ballast Kit
Ballast Lamp Type
Metal Halide
Ballast Max. Lamp Watts
1000
Ballast Voltage
347/480
Ballast Start Type
Pulse
For Use With
Metal Halide HID Bulbs
ANSI Code
M141
Ballast Item
HID Ballast Kit
Input Watts
1,075 W
Ballast Type
Magnetic
Insulation Class
H
Ballast Family
HID Magnetic
Includes
Capacitor, Coil, Core, Hardware, Mounting Bracket
Operating Amps @ 480V
6 A
Number of Lamps
1
Thermal Protection
No
Ballast Lamp Watts
1000
Min. Starting Temp.
-30 Degrees F
Hz
60
Operating Amps @ 240V
12 A
Operating Amps @ 208V
15 A
Operating Amps @ 277V
10 A
Operating Amps @ 120V
22 A
Fixture Ballast Type
Core and Coil
Ballast Bulb Type
Metal Halide
Housing Material
Steel
Frequency
60 Hz
Max. Bulb Watts
1,000 W
Ballast Factor
1
Input Voltage
347/480V AC
Min. Bulb Watts
1,000 W
Brand and Series
Advance
Number of Bulbs Supported
1
Starter Required
No
Standards
CSA Certificate, RoHS Compliant, ULR

Description

Advance, Magnetic, HID Ballast Kit, Ballast Start Type Pulse, ANSI Code M141, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 1,000 W, Input Voltage 347/480V AC, Input Watts 1,075 W, -30 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz
