  9. PHILIPS ADVANCE Electronic Ballast, T8, 120/277V, 1 Lamp, 32W
Advance PHILIPS ADVANCE Electronic Ballast, T8, 120/277V, 1 Lamp, 32W ICN-1P32-N - main

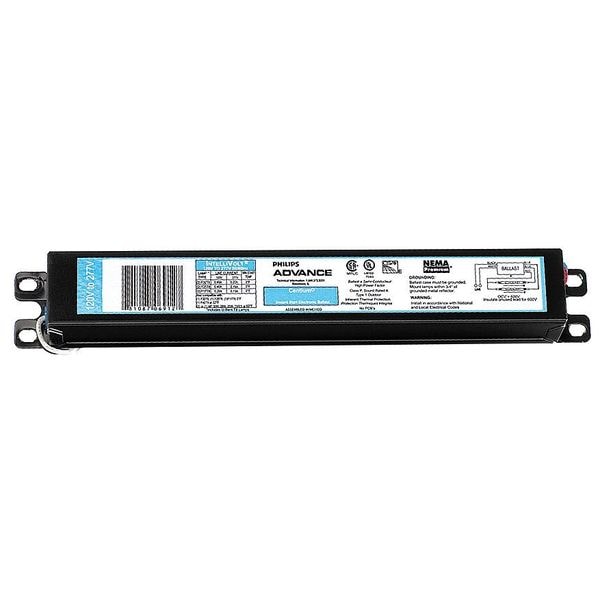

PHILIPS ADVANCE Electronic Ballast, T8, 120/277V, 1 Lamp, 32W

  • Mfr # ICN-1P32-N

  • Zoro # G3029424

product price: $20.89
/ea

Key Features

Ballast Lamp Type
T8
Ballast Max. Number of Lamps
1
Input Voltage
120 to 277V AC
Ballast Voltage
120-277
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ICN-1P32-N
Zoro #
G3029424
UPC #
781087074060
Country of Origin
Mexico

Dimensions

Length
9 1/2 in
Height
1 in
Width
1 3/8 in

Details

Ballast Lamp Type
T8
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
1
Input Voltage
120 to 277V AC
Ballast Voltage
120-277
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Max. Lamp Watts
32
Ballast Type
Electronic
Ballast Dimming Type
No Dimming
Input Watts
29 to 30 W
Ballast Family
Centium(TM)
Number of F32T8 Lamps
1
Number of F32T8U Lamps
1
Ballast Factor
0.91
Light Output
Normal
Number of F28T8 Lamps
1
Ballast Lamp Watts
32
Total Harmonic Distortion
10 %
Wiring Type
Parallel
Number of F17T8 Lamps
1
Number of F25T8 Lamps
1
Min. Starting Temp.
0 Degrees F
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Power Factor
0.98
Amps AC
0.26 to 0.11 A
Voltage
120/277
Standards
CSA Certificate, RoHS Compliant, UL Certificate CEC Listing
Fixture Ballast Type
Electronic
Ballast Bulb Type
T8, T8U
Number of F32T8(28W) Lamps
1
Number of F32T8(26W) Lamps
1
Thermal Protection
Class P
Dimming Method
No Dimming
Dimming Type
No Dimming
Number of F32T8(30W) Lamps
1
Number of Bulbs Supported
1
Sockets Included
No
Max. Bulb Watts
17 W, 25 W, 28 W, 32 W
Dimming Range
No Dimming
Frequency
50/60 Hz
Brand and Series
Centium(TM)
Starter Required
No
Operating Amps @ 120V
0.26 A
Dimming
No
Number of Lamps
1
Lamp Types Supported
(1) F17T8, (1) F25T8, (1) F28T8, (1) F32T8, (1) F32T8U

Description

Centium(TM), Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, Ballast Bulb Type T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F
