MFR # 1PCJ8
Zoro # G1468731
UPC # -
Country of Origin United States

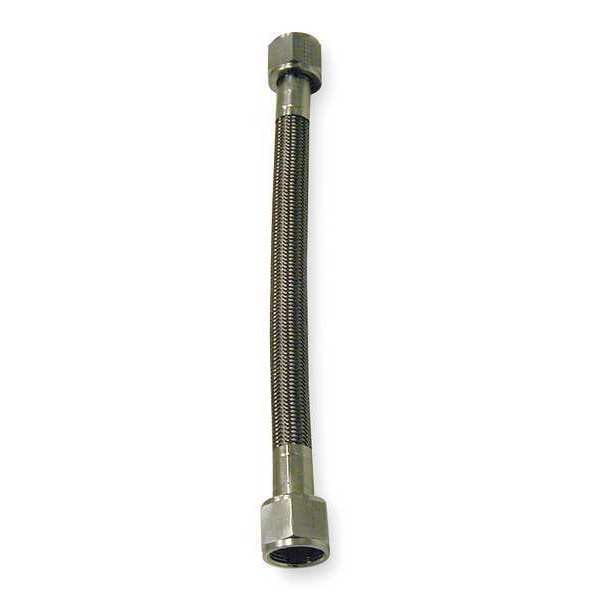

Item PTFE Hose Assembly
Fitting Type FJIC x FJIC
Max. Operating PSI 2000
Tube Material Polytetrafluoroethylene
Fitting Material 301 Stainless Steel x 301 Stainless Steel
Temp. Range -65 Degrees to 450 Degrees F
Temp. Range (F) -65 To 450
Safety Factor 4:1
Max. Pressure 2000 psi
Meets FDA 41, SAE100R14
Cover Material Stainless Steel
Grade Pharmaceutical
Standards FDA 41, SAE100R14
Hose Fitting B Type FJIC
Hose Tube Material PTFE
Hose Fittings 301 Stainless Steel 3/4 in FJIC x 301 Stainless Steel 3/4 in FJIC
Hose Fitting A Material 301 Stainless Steel
Hose Fitting A Type FJIC
Max. Working Pressure @ 70 F 2,000 psi
Hose Fitting B Material 301 Stainless Steel
Hose Cover Material 301 Stainless Steel Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Acetone,Adhesives,Air,Antifreeze (Coolant),Automatic Transmission Fluid,Brake Fluid,Carbon Dioxide,Chromic Acid 10%,Chromic Acid 5%,Citric Acid 50%,Diesel Fuel,Ethyl (Ethanol),Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fuel Oil,Gasoline,Hydraulic Fluid (Petroleum),Hydraulic Fluid (Synthetic),Hydrofluoric Acid (20%),Hydrofluoric Acid (75%),Hydrofluoric Acid 100%,Hydrogen Peroxide,Isopropyl (Isopropanol),Lithium Grease,Lubricated Air,Methyl (Methanol),Methyl Chloride,Methyl Ethyl Ketone (MEK),Mineral Oil,Motor Oil,Naphtha,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Paint,Paint Thinner,Salt Water,Sodium Bisulfate,Sodium Bisulfite,Solvents,Steam,Toluene,Turpentine,Vegetable Oil,Windshield Washer Fluid,Xylene
For Media Type
See full list of For Media Type Acetic Acid,Chromic Acid,Citric Acid,Formic Acid,Hydrofluoric Acid,Nitric Acid,Ketones,Ethanol,Isopropanol,Methanol,Antifreeze,Ethylene Glycol,Gasoline,Diesel Fuel,Hydraulic Fluid,Toluene,Xylene,Water,Motor Oil,Methyl Chloride,Sodium Bisulfate,Sodium Bisulfite,Automatic Transmission Fluid,Brake Fluid,Fertilizers,Lithium Grease,Naphtha,Paint,Paint Thinner,Turpentine,Windshield Washer Fluid,Adhesives,Air,Carbon Dioxide,Fuel Oil,Hydrogen Peroxide,Lubricated Air,Mineral Oil
Not Recommended Chemicals
See full list of Not Recommended Chemicals Automatic Transmission Fluid,Biodiesel,Brake Fluid,Diesel Fuel,E85,Fuel Oil,Gasoline,Heptane,Hexane,Hydraulic Fluid (Petroleum),Hydraulic Fluid (Synthetic),Kerosene,Lacquer Thinners,Lubricated Air,Methyl Chloride,Mineral Oil,Motor Oil,Naphtha,Paint,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Sodium Hypochlorite/Bleach (to 20%),Solvents,Steam,Stoddard Solvent (Mineral Spirits),Sulfuric Acid (10% - 75%),Sulfuric Acid (75% - 100%),Toluene,Trichlorethylene (50%),Turpentine,Vegetable Oil,Xylene
Hose Conductivity Non-Conductive
Interior Texture Smooth
Hose Fitting Material A 301 Stainless Steel
Hose ID 3/8 in
Hose Fitting Type A FJIC
Hose Fitting Type B FJIC
Hose Fitting Material B 301 Stainless Steel
Maximum Working Pressure @ 70F 2,000 psi
Temperature Range -65 Degrees to 450 Degrees F
