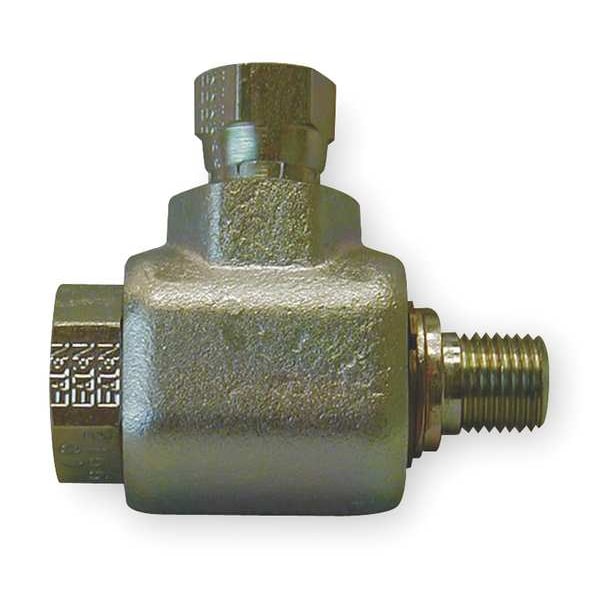

Swivel Joint, 3/8 In, Zinc Plated Steel
- Mfr # FS65000-0606-01
- Zoro # G2066601
product price:Â
$
105.06
/ea
Free Shipping & Returns
Key Features
Casing Thread
3/8-18 NPSM
Connection
NPSM x MNPT
Overall Length
2.53"
Overall Height
2.14"
Swivel Size
3/8"
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FS65000-0606-01
- Zoro #
- G2066601
- UPC #
- 993270644787
- Country of Origin
- United States
- Item
- Swivel Joint
- Casing Thread
- 3/8-18 NPSM
- Connection
- NPSM x MNPT
- Operating Pressure (PSI)
- 5000
- Material of Construction
- Zinc Plated Steel
- Sleeve Thread
- 3/8-18 NPTF
- Standards
- ASME/ANSI B16.5, ASTM A351, MSS-SP-51 Class 150LB
- Seal Material
- Buna N
- Pipe Fitting Material
- Zinc Plated Steel
- Fitting Material
- Steel
- For Fluid Type
- Glycol, Hydraulic Oil, Water
- Minimum Operating Temperature
- -40 Degrees F
- Casing Connection Type
- NPSM
- Casing Thread Gender
- Male
- Sleeve Thread Gender
- Female
- Maximum Operating Temperature
- 250 Degrees F
- Resistance Properties
- Corrosion Resistant
- Sleeve Connection Type
- Threaded
- Fitting Shape
- 90 Degrees Elbow
- Fitting Material Finish
- Zinc-Plated
- Maximum Operating Pressure
- 5,000 psi
- Application
- Fluid Power System
- Operating Pressure - Maximum
- 5,000 psi
Dimensions
- Overall Length
- 2.53"
- Overall Height
- 2.14"
- Swivel Size
- 3/8"
- Casing Thread Size
- 3/8"-18
- Casing Center to End Length
- 1.45 in
- Sleeve Center to Top Height
- 1.48 in
- Sleeve Thread Size
- 3/8"-18
- Overall Width
- 1.26 in
- Casing Dash Size
- 6
- Wire Rope Length
- 2.53 in
- Length
- 2.53 in
Description
Hose Swivel Joint, Fitting Material Steel, Fitting Material Finish Zinc-Plated, Fitting Material Grade Not Applicable, Maximum Operating Pressure 5,000 psi, Overall Length 2.53 in, Seal Material Buna-N, Maximum Operating Temperature 250 Degrees F, Minimum Operating Temperature -40 Degrees F, Standards ASME/ANSI B16.5, ASTM A351, MSS-SP-51 Class 150LB, Application Fluid Power System, Casing Center to End Length 1.45 in, Casing Connection Type NPSM, Casing Dash Size 6, Casing Thread Gender Male
