Grainger Product

  • Mfr # 50433804
  • Zoro # G516017575
product price:
$
1,831.99
/ea
Free Shipping & Returns

Key Features

Minimum Operating Temperature
10 Degrees C
System of Measurement
Metric
Moving Weight
0.199 kg
Voltage
Less Than75V DC
Maximum Stroke
100 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50433804
Zoro #
G516017575
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Attachment Grid Size
30 mm x 30 mm
Attachment Thread Size
M3, M4

Details

Item
Linear Module
Minimum Operating Temperature
10 Degrees C
System of Measurement
Metric
Moving Weight
0.199 kg
Voltage
Less Than75V DC
Maximum Stroke
100 mm
Maximum Operating Temperature
40 Degrees C
Repeatability
+/-0.02 mm
Peak Force
10.7 N

Description

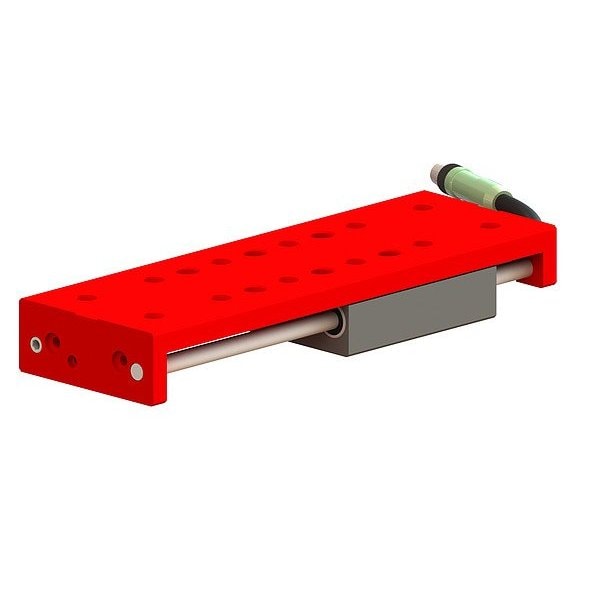

The AFAG - 50433804 is a pneumatic linear module with a guided slide and pneumatic actuator enabling linear motion within specified tolerances. It provides straight-line travel within the specified travel distance and load support per specification. This module operates within a temperature range of 10 Degrees C to 40 Degrees C and offers a maximum stroke length of 100 mm. It is compatible with metric measurement standards and uses attachment points with M3 and M4 thread sizes spaced at a 30 mm x 30 mm grid. Key Features:

  • Maximum stroke: 100 mm for linear travel distance.
  • Peak force output of 10.7 N during operation.
  • Repeatability tolerance of +/-0.02 mm.
  • Moving weight of 0.199 kg representing the mass of the movable components.
  • Attachment grid size of 30 mm x 30 mm for mounting alignment.
  • Attachment thread sizes: M3 and M4 for connection points.
  • Operating temperature range from 10 Degrees C minimum to 40 Degrees C maximum.
  • Voltage rating: up to 75 V DC where applicable.
