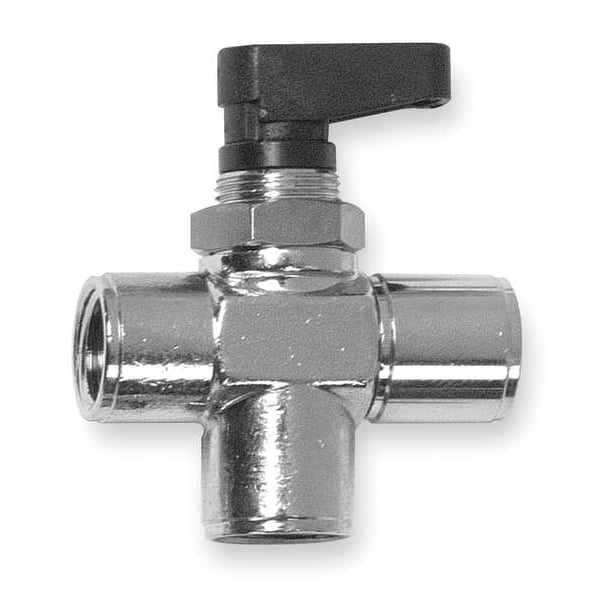

3/8" FNPT Nickel Brass Mini Ball Valve 3-Way

  • Mfr # 86710-06

  • Zoro # G2784171

product price:
$
22.89
/ea

Key Features

Ball Material
Chrome-Plated Brass
Body Style
3-Way
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
One-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
86710-06
Zoro #
G2784171
UPC #
-
Country of Origin
United States
Ball Material
Chrome-Plated Brass
Body Style
3-Way
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
One-Piece
For Media
Air, Gas, Oil, Water
Connection Type
FNPT x FNPT x FNPT
Item
Mini Ball Valve
Stem Material
Nickel-Plated Brass
Max. Pressure
190 PSI CWP
Seat Material
PTFE
Temp. Range
0 Degrees to 200 Degrees F
Ball Valve Product Group
Manual
Body Material
Chrome-Plated Brass
Handle Type
Wedge
Stem Type
Blowout Resistant
Features
Open Center
Handle Material
Composite
Seal Material
Buna-N
Type
Open Center
Outlet Connection Type - Side 1
NPTF
Handle - Locking
Non-Locking
Outlet Connection Gender - Side 2
Female
Vacuum Service Rating
28 in Hg
Operating Temperature - Minimum
0 Degrees F
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
175 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Vented Ball Valve
Non-Vented
Color - Valve Handle
Black
Maximum Pressure - Steam
Not Rated
Outlet Connection Type - Side 2
NPTF
Outlet Connection Gender - Side 1
Female
Inlet Connection Entry
Bottom
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT
Inlet Connection Type
NPT
Maximum Pressure - Operating
290 psi
Inlet Connection Gender
Female
Valve Construction
One-Piece

Description

Manual Three-Way Ball Valve, Body Material Chrome-Plated Brass, Valve Construction One-Piece, Average Surface Roughness (Ra) Not Applicable, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 3/8 in, Inlet Connection Size 3/8 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 3/8 in, Outlet Connection Gender - Side 1 Female, Handle Material Composite
