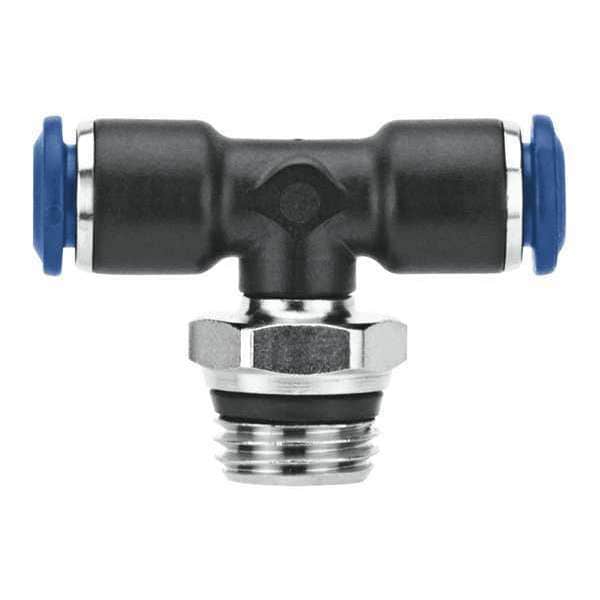

Push-Fit Tee Fitting, Push-to-Connect x Push-to-Connect x Universal, 3/8 in Tube OD

  • Mfr # 85210-06-06

  • Zoro # G5096729

product price:
$
9.25
/ea

Key Features

Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Universal
Tube Size
3/8 in
Standards
EN 331, REACH, RoHS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
85210-06-06
Zoro #
G5096729
UPC #
-
Country of Origin
Japan

Dimensions

Tube Size
3/8 in
Pipe Size
3/8 in
Hex Head Size
45/64 in
Overall Length
2 3/32 in
Fitting Side A Tube Outer Diameter
3/8 in
Fitting Side C Pipe Size
3/8 in
Fitting Side B Tube Outer Diameter
3/8 in
Fitting Side 1 Tube Outer Diameter
3/8 in
Fitting Side 2 Tube Outer Diameter
3/8 in
Fitting Side 3 Pipe Size
3/8 in
Wire Rope Length
2 3/32 in
Length
2 3/32 in

Details

Item
Push-Fit Tee Fitting
Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Universal
Standards
EN 331, REACH, RoHS
Application
Air
Temp. Range
0 Degrees to 160 Degrees F
Fitting Shape
Tee
Color
Black
Compliance
EN331, REACH, ROHS
Gasket Material
NBR70
Body Material
Composite
Fittings Sub-Category
Tees
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Fitting Side C Connection Type
Universal
Minimum Operating Temperature
0 Degrees F
Fitting Material
Nylon
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side A Connection Type
Push-to-Connect
Fitting Side B Connection Type
Push-to-Connect
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
System of Measurement
Imperial
Maximum Operating Temperature
160 Degrees F
Maximum Operating Pressure
250 psi
Operating Pressure - Maximum
290 psi
Connector Type
Adapter
Operating Temperature - Maximum
160 Degrees F
Fitting Side 3 Connection Type
Universal Thread
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
For Media Type
Compressed Air
Operating Temperature - Minimum
0 Degrees F

Description

The AIGNEP USA - 30428511 is a durable push-on hose fitting. These fittings play a crucial role in managing fluid control in various industrial and commercial applications. Constructed with high-quality materials, it is designed to help connect a hose to an air vacuum or pneumatic system. The fitting is built with a robust design aimed at helping it fit accurately on compatible equipment and contribute to the processing goals of its designated applications.

Key Features:

  • Category: Push on hose fittings. These types of fittings are pushed onto an air or vacuum hose to create a leak-proof seal. They are widely used in industrial applications where a secure and continuous flow of fluid is required.
  • Material: Constructed with industrial-grade materials, this fitting is suitable for a range of applications.
  • Function: This product is intended to help connect a hose to an air vacuum or pneumatic system, helping to manage the fluid flow.
  • Structural Design: Features a solid structure, designed for use in diverse industrial and commercial settings.
  • Precision Performance: This item aims to fit accurately on any compatible equipment and function within its application requirements.
