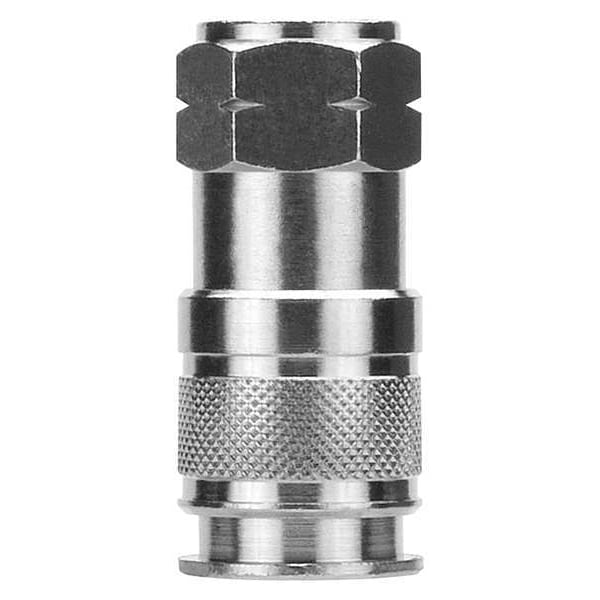

Quick Disconn. Fitting, (F)NPT, 1/4, Brass
- Mfr # 80192-04
- Zoro # G9078167
Key Features
Specifications
Details
- MFR #
- 80192-04
- Zoro #
- G9078167
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Universal
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 595 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- 0 Degrees to 160 Degrees F
- Application
- Compressed Air Systems, Air Tools
- Includes
- Locking Balls, Protected Seal
- Valve Type
- Poppet
- Barbed
- No
- Max. Working Pressure @ 70 F
- 250 psi
- For Use With
- Compressed Air Systems
- Connection Thread Type
- NPT
- Shell Material
- Brass
- Wire Color
- Silver
- Compatible Product Type
- Compressed Air Systems
- Traction Material
- Brass
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 2 1/8 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 15/16 in
- Wire Rope Length
- 2 1/8 in
- Length
- 2 1/8 in
Description
The AIGNEP USA - 80192-04 is a quick-connection hose coupling intended for connection within compressed air systems and use with compatible air tools. It supports push-to-connect operation for connection and disconnection, enabling connection and disconnection using the sleeve locking mechanism, and includes a sleeve locking mechanism for fast, secure engagement. The coupling is compatible with fittings and couplings that meet the stated interchange standards (as applicable) and includes an integrated poppet valve for regulating air flow during connection and disconnection. It is rated for operation within 0°F to 160°F and has a maximum working pressure: 250 psi at 70°F.
Key Features:
- Body and coupling size: 1/4 in (as specified)
- Hose fitting gender: Female
- Connection type: NPTF thread size 1/4"-18
- Material: Brass body with nickel-plated finish
- Includes: nickel-plated brass, stainless steel locking balls, and protected seal
- Coupling component: Socket
- Seal material: Nitrile
- Maximum flow rate: 595 L/min (as specified)
- Overall length: 2.13 in
- Maximum outside diameter: 15/16 in
- Poppet valve included
