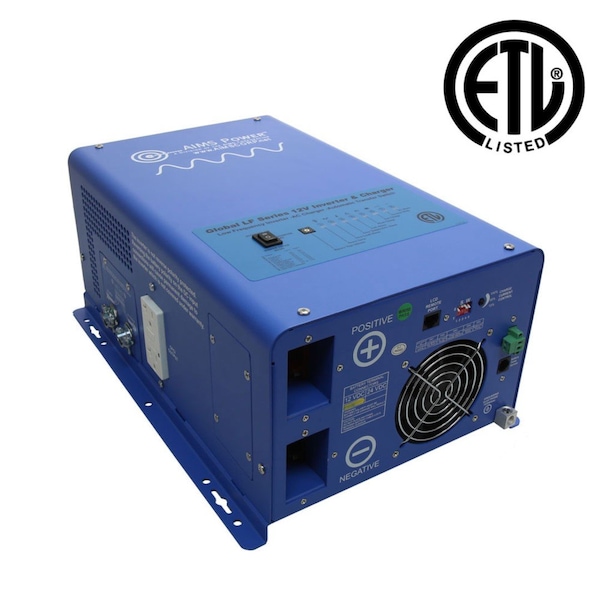

Power Inverter and Battery Charger, Pure Sine, 4500 W Peak, 1,500 W Continuous, 2 Outlets

  • Mfr # PICOGLF15W12V120V

  • Zoro # G4430198

product price:
$
937.99
/ea
Free Shipping & Returns

Key Features

Peak Output Power
4500 W
Continuous Output Power
1,500 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
100V/110V/120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PICOGLF15W12V120V
Zoro #
G4430198
UPC #
840271003115
Country of Origin
China

Dimensions

Height
7"
Length
16.25 in
Depth
15.35"
Width
11"

Details

Item
Power Inverter and Battery Charger
Peak Output Power
4500 W
Continuous Output Power
1,500 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
100V/110V/120V AC
Outlet Type
GFCI / Hardwire
DC Connection
Battery Cables
Number of Outlets
2
Nominal Output Power
1,500 W
Standards
UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B
Features
Listed to UL 458 Standards and CSA 22.2 No 107.1, 1500 watt low frequency inverter, 4500 watt surge for 20 seconds -3x surge capability, Battery priority selector, AC direct connect terminal block, GFCI – 20amps, Marine coated and protected, Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4, Remote panel available, Auto gen start, Auto frequency, 10msec typical transfer time, 7 battery type settings for charger, Selectable 25W power save mode (hibernation), Automatic transfer switch
Application
Renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current
Includes
Inverter Charger
Inveter Output Voltage
Depends On Battery Type
Specification
Inverter Output Specifications: Input Specifications: Charger Specifications: Dimensions: Listed to UL 458 Standards;Continuous Output Power: 1500 Watts;Surge Rating: 4500 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Output Voltage: 100-110-120Vac;Nominal Efficiency: >92% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Bypass Terminal Breaker – 20 amps;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low /battery Voltage Restart: 13.0Vdc;Idle Consumption: 13.5 watts;Charger Breaker – 20 amps;Power Saver Mode Idle Consumption: 8 watts;Output Voltage: Depends on battery Type;Charger Rate: 50A;Unit Weight: 38 lbs.;Unit Size L x W x H: 15.35 x 11 x 7 inches;Shipping Weight: 46 lbs.;Shipping L x W x H: 20.5 X 13.8 X 12.2 inches
Color
Blue

Description

Inverter Charger,Pure Sine,1500W
