Airotronics

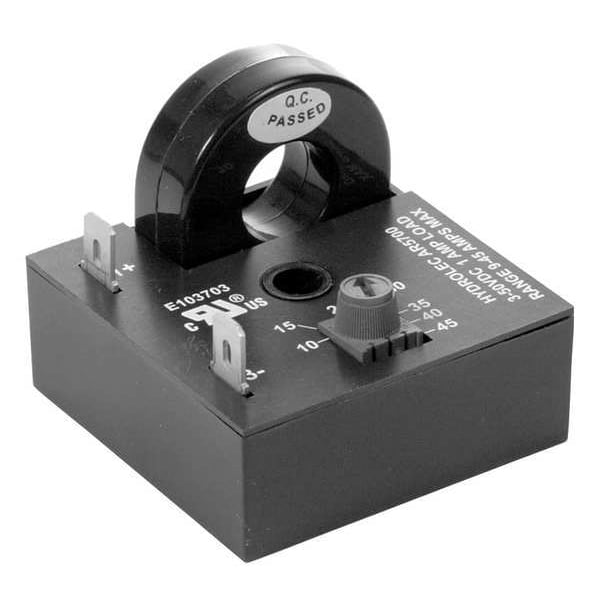

Current Sens Relay, 6 to 30A, Self Powered

product price: $53.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Input or Control Voltage Self Powered
  • AC Contact Rating - Relay 1.00A @ 19 to 240V
  • DC Contact Rating - Relay 1.00A @ 50V
  • Mounting - Relay Surface
  • Contact Form - Relay SPST-NO
See all product information

Product Information

Dimensions

Overall Height - Relay 1.85 in
Body Width - Relay 2.0 in
Body Height - Relay 1.85 in
Body Depth - Relay 2.0 in
Body Width 2 in
Sensing Hole Diameter 0.63 in
Body Depth 1 in
Overall Depth 1.8 in
Body Height 2 in

Details

Item - Relay Current Sensing Relay
Input or Control Voltage Self Powered
AC Contact Rating - Relay 1.00A @ 19 to 240V
DC Contact Rating - Relay 1.00A @ 50V
Mounting - Relay Surface
Contact Form - Relay SPST-NO
Sensing Amp Range 6.00 to 30.00A
Trip Point 6 to 30 A
Trip Delay 0.3 sec
Core Type - Relay Solid
Core Type Solid
Max. Inrush Current 200 A
Input Voltage 3 to 50V DC
Type of Output Solid State
Mounting Surface
Electrical Connection Quick Connect Tabs
Contact Amps 1.00A
Sensor Opening 0.62 in
Contact Form SPST-NO
Status Indicator No Indicator
Sensor Toroidal 0.620 Through Hole
Item Current Sensor Relay
Minimum Operating Temperature -13 Degrees F
Current Rating 30 A
Contact Rating (DC) 1 A @ 50V
Mounting Style Surface
Operating Current 30 A
Contact Rating (AC) 1 A @ 19 to 240V
Trip Point Type Adjustable
Electrical Connection Type Tab
Relay Mounting Style Surface
Maximum Operating Temperature 149 Degrees F
Minimum Switching Current 8 A
Socket Code Configurator Surface
For Use With Sensors
Standards RoHS Compliant

Description

Current Sensor Relay, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 19 to 240V, Contact Rating (DC) 1 A @ 50V, Core Type Solid, Current Rating 30 A, Input Voltage 3 to 50V DC, Mounting Style Surface, Trip Point 6 to 30 A, Trip Point Type Adjustable, Electrical Connection Quick Connect Tabs, Sensing Hole Diameter 0.63 in, Status Indicator No Indicator, Body Depth 1 in, Body Height 2 in, Body Width 2 in, For Use With Sensors
