  11. 1/4" JIC x O-Ring Boss 316 SS Male 90 Degree Elbow
Shop All Flared Tube Fittings
Airway

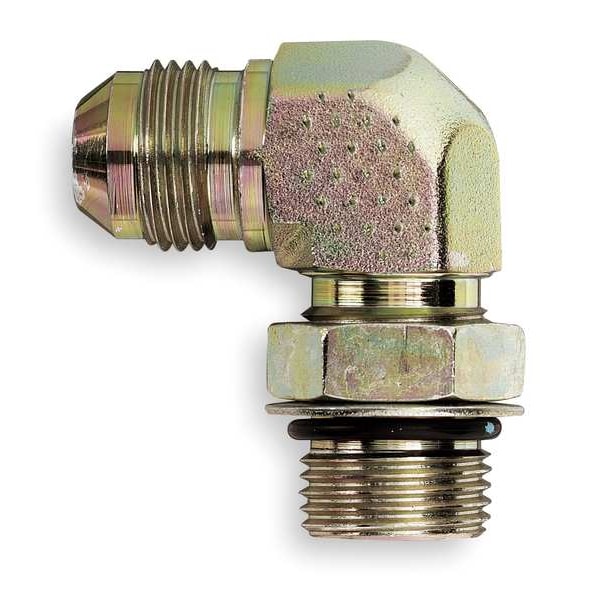

1/4" JIC x O-Ring Boss 316 SS Male 90 Degree Elbow

original price: $21.99
23% off
new price: $16.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material 316 Stainless Steel
  • Flare Type 37 Degrees
  • Specific Fitting Shape 90 Degrees Elbow
  • Fitting Connection Type JIC x O-Ring Boss
  • Tube Size 1/4 in
See all product information

Product Information

Dimensions

Tube Size 1/4 in
Flare Thread Size 7/16-20
Hose Fitting A Size 1/4 in
Thread Size 7/16 in -20
Overall Length 1.03125 in
Hose Fitting B Size 1/4 in
Length 1.03"

Details

Item Male Elbow, 90 Degrees
Tube Fitting Material 316 Stainless Steel
Flare Type 37 Degrees
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type JIC x O-Ring Boss
Basic Pipe Fitting Material Metal
Temp. Range -165 Degrees to 1200 Degrees F
Specific Pipe Fitting Shape 90 Degrees Elbow
Pipe Fitting Connection Type JIC x O-Ring Boss
Basic Pipe Fitting Shape Elbow
Standards MS51527, SAE J514 070220
Max. Pressure 6000 psi
Hose Fitting A Connection Type JIC
Hose Fitting B Connection Type O-Ring Boss
Fitting Material Stainless Steel
Material Grade 316
Fitting Shape 90 Degrees Elbow
Type 90 Degrees

Description

Male Elbow, 90 Degrees, Thread Size 7/16 in -20, Fitting Shape 90 Degrees Elbow, Hose Fitting A Size 1/4 in, Hose Fitting B Size 1/4 in, Hose Fitting A Connection Type JIC, Hose Fitting B Connection Type O-Ring Boss, Overall Length 1.031 in, Fitting Material Stainless Steel, 316, Temp. Range -165 Degrees to 1200 Degrees F, MS51527, SAE J514 070220

Restrictions
