  11. Air Cooled Aftercooler, Max HP 10, 35 CFM

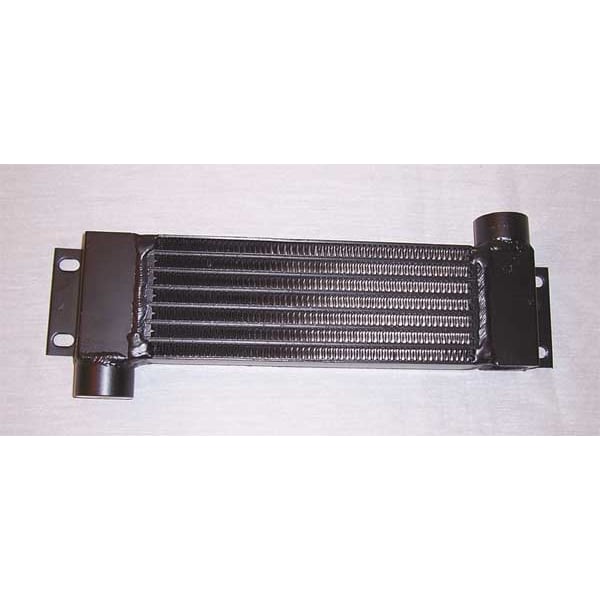

Akg Air Cooled Aftercooler, Max HP 10, 35 CFM C-1835BG - main

Air Cooled Aftercooler, Max HP 10, 35 CFM

  • Mfr # C-1835BG

  • Zoro # G1180961

product price: $309.99
/ea
Free Shipping & Returns

Key Features

Max. Compressor
10
Max. Pressure (PSI)
250 psi
NPT Inlet/Outlet Air (In.)
1 in
Min. Pressure (PSI)
60 psi
Depth (In.)
1.77 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C-1835BG
Zoro #
G1180961
UPC #
-
Country of Origin
United States

Dimensions

Depth (In.)
1.77 in
Width (In.)
15.94 in
Height (In.)
5.55 in
Overall Width
15 15/16 in
Air Inlet Size
1 in
Overall Height
5 1/2 in
Overall Depth
1 3/4 in
Air Outlet Size
1 in

Details

Max. Compressor
10
Max. Pressure (PSI)
250 psi
NPT Inlet/Outlet Air (In.)
1 in
Min. Pressure (PSI)
60 psi
Includes
Universal Mounting Bracket
Max. Flow CFM @ 100 PSI
35 cfm
Max. Temp. (F)
400 Degrees F
Application
Removes Harmful Water, Oil and Contaminants from Compressed Air System
Item
Air Cooled Aftercooler
Tube Material
Aluminum
Fin Material
Aluminum
For Use With
Compressor Beltguard
Construction
Aluminum
Cooling Method
Air
Features
Compact Aluminum Bar and Plate Design Provides Maximum Performance With Low Pressure Drop, Mount Directly to Compressor's Belt Guard Utilizing Compressor Pulley's Air Flow for Cooling
Maximum Operating Temperature
400 Degrees F
Maximum Compressor Output Power
10 hp
Approach Temperature
15 Degrees F
Maximum Operating Pressure
250 psi
Maximum Air Flow
35 cfm
Minimum Operating Pressure
60 psi
Air Outlet Connection Type
NPT
Air Inlet Connection Type
NPT

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 10 hp, Maximum Air Flow 35 cfm, Air Inlet Size 1 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 400 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 5 1/2 in, Overall Width 15 15/16 in, Overall Depth 1 3/4 in, Voltage -, Air Outlet Connection Type NPT, Air Outlet Size 1 in, Approach Temperature 15 Degrees F, Construction Aluminum, Cooling Method Air
