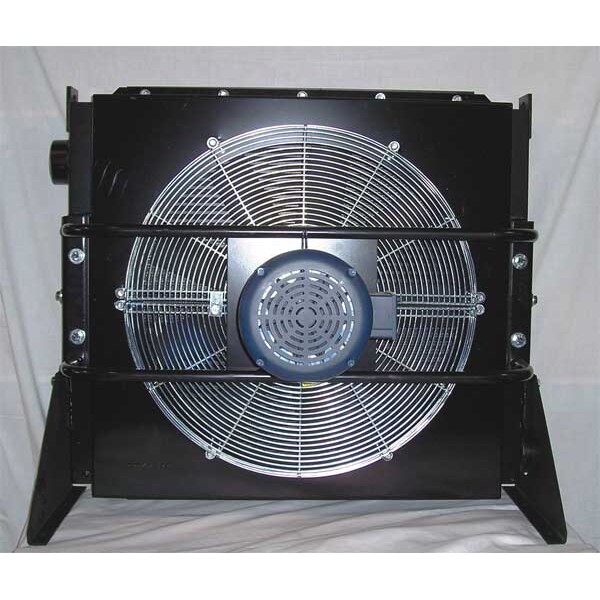

Akg Air Aftercooler, Max HP 500,3016 CFM CC2000-3 - main

Air Aftercooler, Max HP 500,3016 CFM

  • Mfr # CC2000-3

  • Zoro # G2138678

product price: $6,144.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.

Key Features

Max. Compressor
500
Max. Pressure (PSI)
250 psi
Fan HP
7 1/2
Voltage
230/460V AC
NPT Inlet/Outlet Air (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CC2000-3
Zoro #
G2138678
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
37.44 in
Depth (In.)
29.84 in
Width (In.)
42.91 in
Overall Depth
29 13/16 in
Air Outlet Size
4 in
Overall Width
42 7/8 in
Air Inlet Size
4 in
Overall Height
37 7/16 in

Details

Max. Compressor
500
Max. Pressure (PSI)
250 psi
Fan HP
7 1/2
Voltage
230/460V AC
NPT Inlet/Outlet Air (In.)
4 in
Max. Temp. (F)
350 Degrees F
Fin Material
Aluminum
Standards
CSA Certified, UL Listed
Min. Pressure (PSI)
60 psi
Tube Material
Aluminum
Includes
Mounting Legs
Max. Amps
19.6/9.8 A
Junction Box
Single Point Electrical
Shell Material
Steel
Application
Removes Harmful Water, Oil and Contaminants from Compressed Air System
Max. Flow CFM @ 100 PSI
3,016
Item
Air Cooled Aftercooler
For Use With
Rotary Air Compressor
Construction
Aluminum
Maximum Compressor Output Power
400 hp
Maximum Operating Temperature
350 Degrees F
Cooling Method
Air
Maximum Operating Pressure
250 psi
Air Outlet Connection Type
NPT
Features
Reduced Air Slide Fouling
Maximum Air Flow
3,016 cfm
Minimum Operating Pressure
60 psi
Maximum Fan Horsepower
7 1/2 hp
Phase
Three
Junction Box Design
Single Point Electrical
Current Rating
19.6 A
Air Inlet Connection Type
NPT
Frequency
60 Hz

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 400 hp, Maximum Air Flow 3,016 cfm, Air Inlet Size 4 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 350 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 37 7/16 in, Overall Width 42 7/8 in, Overall Depth 29 13/16 in, Phase Three, Voltage 230/460V AC, Maximum Fan Horsepower 7 1/2 hp, Air Outlet Connection Type NPT, Air Outlet Size 4 in, Construction Aluminum, Cooling Method Air, Current Rating 19.6 A
