  11. Oil Cooler, 12 VDC, 8-80 GPM, 0.48 HP

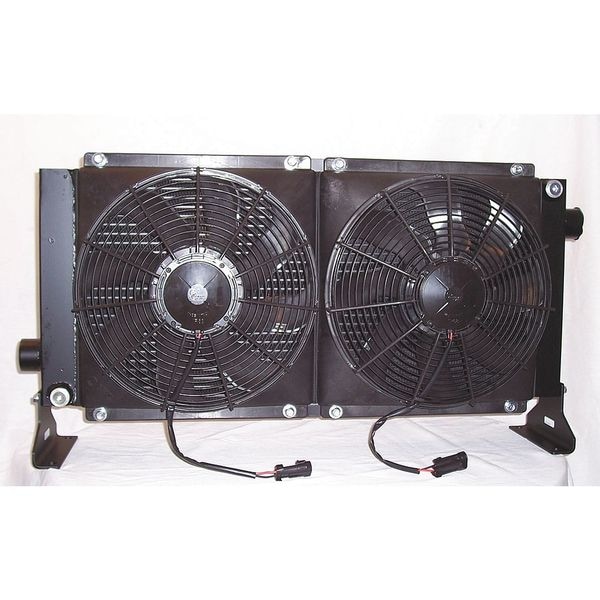

Akg Oil Cooler, 12 VDC, 8-80 GPM, 0.48 HP D70-12 - main

Oil Cooler, 12 VDC, 8-80 GPM, 0.48 HP

  • Mfr # D70-12

  • Zoro # G3129174

product price: $1,792.99
/ea
Free Shipping & Returns

Key Features

HP Heat Removed
70 hp
Motor Type - Oil Coolers
DC
Max. Flow
80 gpm
Max. Pressure
377 psi
Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D70-12
Zoro #
G3129174
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #20
Port Size
SAE #20
Height (In.)
20.29
Depth (In.)
9.96
Width (In.)
36.22
Overall Depth
9.96 in
Overall Height
20.29 in
Overall Width
36.22 in
Outlet Port Thread Size
SAE #20
Motor Frame Size
IP 68

Details

HP Heat Removed
70 hp
Motor Type - Oil Coolers
DC
Max. Flow
80 gpm
Max. Pressure
377 psi
Voltage
12V DC
Includes
Foot Mounting Bracket
Flow Ranges (GPM)
8 to 80
Finish
Black Painted
Max. Temp.
250 Degrees F
Motor Amps
29
Motor HP
0.48
Item
Forced Air Oil Cooler
Max. Pressure (PSI)
377
NEMA/IEC Frame
IP 68
Type
DC Motor
Construction
Aluminum
Fan Blade Material
Plastic
Motor Enclosure Design
Totally Enclosed Nonventilated
Fan Guard Material
Plastic
With Motor/Without Motor
With Motor
HP
0.48 hp
Bypass Valve Included
No
Full Load Amps
29 A
Oil Cooler Finish
Powder Coated
Flow Range
8 to 80 gpm
Outlet Port Thread Gender
Female
Oil Cooler Material
Aluminum
Max. Operating Temp.
250 Degrees F
Max. Oil Temp.
250 Degrees F
Compatible Hydraulic Fluids
Up to ISO 320
Inlet Port Thread Gender
Female
Shroud Material
Plastic
No. of Fans
2
Mounting Bracket Material
STEEL

Description

Forced Air Oil Cooler, HP Heat Removed 70 hp, Voltage 12V DC, Max. Flow 80 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #20, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #20, Outlet Port Thread Gender Female, Overall Height 20.29 in, Overall Width 36.22 in, Overall Depth 9.96 in, Flow Range 8 to 80 gpm, 29 A Full Load Amps, 0.48 hp HP, Motor Frame Size IP 68, Motor Type - Oil Coolers DC
