Shop AMERICAN STAINLESS PUMPS

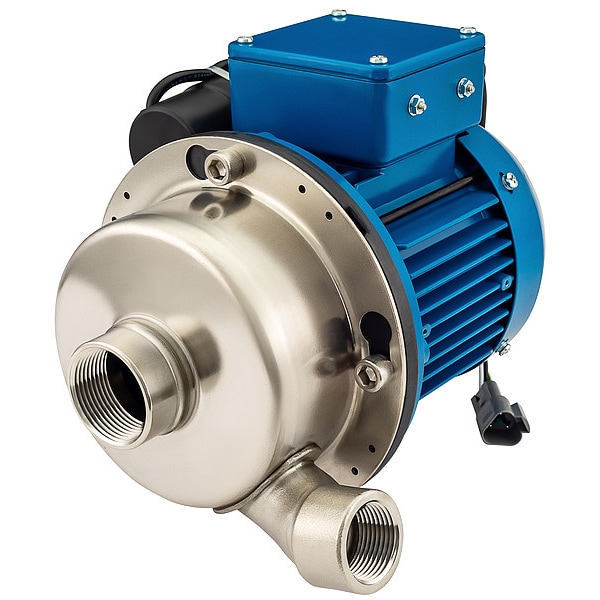

Centrifugal Pump, 115/230VAC, SS

  • Mfr # FDP3AH

  • Zoro # G600719712

product price:  $554.99
/ea
Free Shipping & Returns

Key Features

Discharge Pump Type
Centrifugal Pump
HP - Pumps
1 hp
Phase - Pumps
1
Voltage - Pumps
115/230VAC
Max. Pressure - Pumps
64 ft of head
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FDP3AH
Zoro #
G600719712
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
1.25 in NPT
Outlet Size - Pumps
1 in NPT
Diameter
6 3/4 in
Width
6 3/4 in
Length
10 3/32 in
Max. Dia. Solids
27/100 in
Height
6 22/25 in
Cord Length
1 ft
Manufacturers Warranty Length
1 yr
Overall Width
6.7 in
Compatible Discharge Pipe Size
1 in
Overall Length
10 in
Overall Height
6.8 in
Compatible Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.27 in
Impeller Diameter
4 19/50 in
Discharge Diameter
1 in
Motor Frame Size
56J
Shaft Outer Diameter
5/8 in
Inlet Diameter
1 1/4 in

Details

Discharge Pump Type
Centrifugal Pump
HP - Pumps
1 hp
Phase - Pumps
1
Voltage - Pumps
115/230VAC
Max. Pressure - Pumps
64 ft of head
Housing Material - Pumps
304 Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head
30 to 50 gpm
Wetted Materials
Stainless Steel
Phase
Single
GPM of Water @ 40 Ft. of Head
53 g/min
Max. Case Pressure
50 psi
Amps
9.6/4.8
Duty
Continuous
Max. Head
64 ft
Impeller Type
Semi-Open
Bearing Type
Sealed Ball
Motor Ambient Temp. Rating
40 Degrees C
Thermal Protection
No
Hz
60 Hz
Agency Compliance
UL
Max. Specific Gravity
1
Motor RPM
3,420 RPM
Frame
56J
Impeller Material
Stainless Steel
Best Efficiency GPM @ PSI
37
Max. Liquid Temp.
225 Degrees F
Item
Centrifugal Pump
Motor Enclosure
Totally Enclosed Fan Cooled
Cord Type
Amphenol Plug
Port Rotation
Top
GPM of Water @ 60 Ft. of Head
14 g/min
Overload Protection
Auto
Seal Material
Buna-N, Carbon, Ceramic
Installation Position
Horizontal
Motor Type
Split Capacitor Start
Inlet Pressure
10 psi
GPM of Water @ 50 Ft. of Head
35 g/min
Series
FDP
Motor Ambient Temperature (Maximum)
104 Degrees F
Standards
UL Listed
Best Efficiency Head
62 ft
Electrical Connection Type
Plug-In
Intake Type
NPT
Suction Lift (Maximum)
24 ft
Maximum Feet of Head
64 ft
Specific Gravity (Maximum)
1
Pump Housing Material
Stainless Steel
Motor Frame Designation
56J
Horsepower
1 hp
Duty Cycle
Continuous
Frequency
60 Hz
Best Efficiency Flow
37 gpm
Priming
Manual
Mounting Orientation
Horizontal
Maximum Media Temperature
225 Degrees F
Discharge Type
NPT
Maximum RPM
3,420 RPM
Flow Rate @ 50 ft of Head (Maximum)
35 gpm
Impeller Design
Semi-Open
Nameplate Voltage
115/230V AC
For Use With Potable Systems
Yes
NPSHr
23.1 ft of head
Wetted Material
Stainless Steel
Flow Rate @ 40 ft of Head (Maximum)
53 gpm
Flow Rate @ 60 ft of Head (Maximum)
14 gpm
Thermal Overload Protection
No
Number of Stages
1
Discharge Position
Offset
Media Temperature - Minimum
-40 Degrees F
Suction Lift - Maximum
24 ft
Pumping Application
Boiler Feed, Booster Services, Condensate Removal, Condensate Return, Coolant Recirculating, Cooling and Heat Transfer, Evaporative Cooling, Filtration, Jockey Pump Services, Liquid Transfer, Reverse Osmosis and Water Treatment, Spraying Systems, Water Circulation
Case Pressure - Maximum
50 psia
Volute Material
304 Stainless Steel
Feet of Head (Maximum)
65 ft
Flow Rate (Maximum)
53 gpm
Shut Off Pressure - Maximum
50 psia
Media Temperature - Maximum
225 Degrees F
Inlet Position
Center
Motor Speed - Maximum
3,420 RPM
Full Load Current
9.6/4.8
Discharge Orientation
Top
Drive Coupling Type
No Coupling
Inlet Orientation
Top
Shaft Seal Material
Buna-N/Carbon/Ceramic
Chemical Compatibility
Ambient Temperature - Maximum
104 Degrees F
Pump Design
End Suction
Discharge Rotation Increments
90 Degrees
Shaft Seal Type
Mechanical
Shaft Material
300 Stainless Steel

Description

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 53 gpm, Flow Rate @ 60 ft of Head (Maximum) 14 gpm, Maximum Feet of Head 64 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 50 ft of Head (Maximum) 35 gpm, Suction Lift (Maximum) 24 ft, Priming Manual
