Shop AMERICAN STAINLESS PUMPS

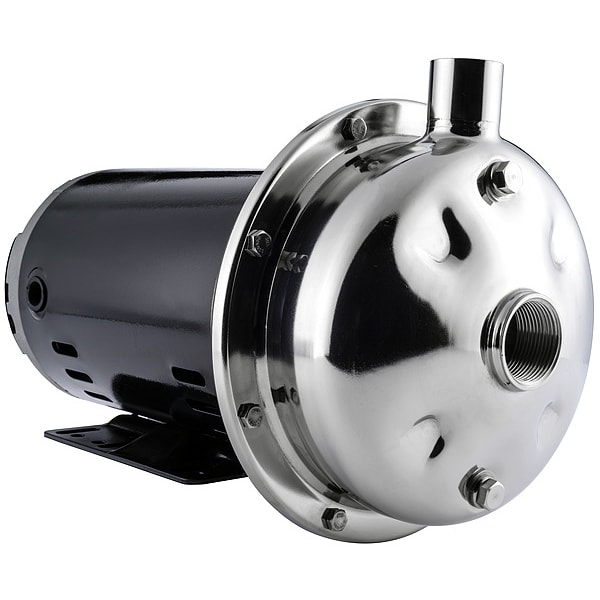

Centrifugal Pump, 230VAC, SS

  • Mfr # D3701045D2F

  • Zoro # G900719702

product price:  $1,474.99
/ea
Free Shipping & Returns

Key Features

Discharge Pump Type
Centrifugal Pump
HP - Pumps
5 hp
Phase - Pumps
1
Voltage - Pumps
230VAC
Max. Pressure - Pumps
192 ft of head
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D3701045D2F
Zoro #
G900719702
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
1.25 in NPT
Outlet Size - Pumps
1 in NPT
Max. Dia. Solids
3/40 in
Diameter
9 1/5 in
Length
16 4/5 in
Height
10 1/10 in
Width
9 1/5 in
Manufacturers Warranty Length
1 yr
Overall Length
16.8 in
Overall Width
9.2 in
Solid Diameter (Maximum)
0.08 in
Overall Height
10.1 in
Compatible Discharge Pipe Size
7 in
Compatible Intake Pipe Size
1 1/4 in
Inlet Diameter
1 1/4 in
Impeller Diameter
7 in
Shaft Outer Diameter
5/8 in
Discharge Diameter
7 in
Motor Frame Size
56J

Details

Discharge Pump Type
Centrifugal Pump
HP - Pumps
5 hp
Phase - Pumps
1
Voltage - Pumps
230VAC
Max. Pressure - Pumps
192 ft of head
Housing Material - Pumps
304 Stainless Steel
Motor Enclosure - Pumps
Open Dripproof
Best Efficiency Range GPM @ Head
40 to 60 gpm
Duty
Continuous
Thermal Protection
No
Impeller Material
Stainless Steel
Best Efficiency GPM @ PSI
50
GPM of Water @ 120 Ft. of Head
64 g/min
Bearing Type
Sealed Ball
Item
Centrifugal Pump
Phase
Single
Motor Enclosure
Open Drip Proof
GPM of Water @ 140 Ft. of Head
53 g/min
Impeller Type
Enclosed
Seal Material
Carbon, Silicon Carbide, Viton
Motor Type
Capacitor-Start
Installation Position
Horizontal
Hz
60 Hz
Max. Liquid Temp.
400 Degrees F
Motor RPM
3,500 RPM
Agency Compliance
CSA, UL
Motor Ambient Temp. Rating
40 Degrees C
Max. Case Pressure
125 psi
Max. Head
192 ft
Port Rotation
Top
Cord Type
None
GPM of Water @ 130 Ft. of Head
60 g/min
Overload Protection
Auto
Frame
56J
Amps
22.0/21.7
Wetted Materials
Stainless Steel
Max. Specific Gravity
1.05
Inlet Pressure
10 psi
Series
7SP
Best Efficiency Flow
50 gpm
Maximum Media Temperature
400 Degrees F
Horsepower
5 hp
Thermal Overload Protection
No
Maximum RPM
3,500 RPM
Nameplate Voltage
230V AC
Motor Ambient Temperature (Maximum)
104 Degrees F
Motor Frame Designation
56J
Best Efficiency Head
145 ft
For Use With Potable Systems
Yes
Duty Cycle
Continuous
Discharge Type
NPT
Standards
CSA Certified, UL Listed
Wetted Material
Stainless Steel
Flow Rate @ 120 ft of Head (Maximum)
64 gpm
Flow Rate @ 160 ft of Head (Maximum)
39 gpm
Flow Rate @ 180 ft of Head (Maximum)
20 gpm
NPSHr
23.1 ft
Specific Gravity (Maximum)
15
Intake Type
NPT
Maximum Feet of Head
192 ft
Impeller Design
Closed
Mounting Orientation
Horizontal
Pump Housing Material
Stainless Steel
Maximum Flow Rate
64 gpm
Frequency
60 Hz
Flow Rate @ 140 ft of Head (Maximum)
53 gpm
Priming
Manual
Electrical Connection Type
Hardwired
Suction Lift (Maximum)
24 ft
Pump Design
End Suction
Ambient Temperature - Maximum
104 Degrees F
Suction Lift - Maximum
24 ft
Shut Off Pressure - Maximum
125 psia
Media Temperature - Maximum
400 Degrees F
Number of Stages
1
Motor Speed - Maximum
3,500 RPM
Feet of Head (Maximum)
193 ft
Shaft Seal Material
Carbon/FKM/Silicon Carbide
Drive Coupling Type
No Coupling
Flow Rate (Maximum)
64 gpm
Discharge Orientation
Top
Discharge Position
Center
Chemical Compatibility
Ammonium Chloride 10%, Ammonium Hydroxide, Antifreeze, Boric Acid 10%, Citric Acid, Detergents, Diethylene Glycol, Lactic Acid, Potassium Hydroxide, Potassium Hydroxide 50%, Potassium Permanganate 20%, Propylene Glycol, Saltwater, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Water, Water-Glycol
Inlet Orientation
Top
Full Load Current
22.0-21.7
Case Pressure - Maximum
125 psia
Discharge Rotation Increments
45 Degrees
Shaft Material
300 Stainless Steel
Media Temperature - Minimum
0 Degrees F
Shaft Seal Type
Mechanical
Inlet Position
Center
Pumping Application
Boiler Feed, Booster Services, Condensate Removal, Condensate Return, Coolant Recirculating, Cooling and Heat Transfer, Evaporative Cooling, Filtration, Jockey Pump Services, Liquid Transfer, Reverse Osmosis and Water Treatment, Spraying Systems, Water Circulation
Volute Material
304 Stainless Steel

Description

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 5 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) Not Applicable, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 192 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 7 in, Discharge Type NPT, Motor Enclosure Open Drip Proof, Maximum Flow Rate 64 gpm
